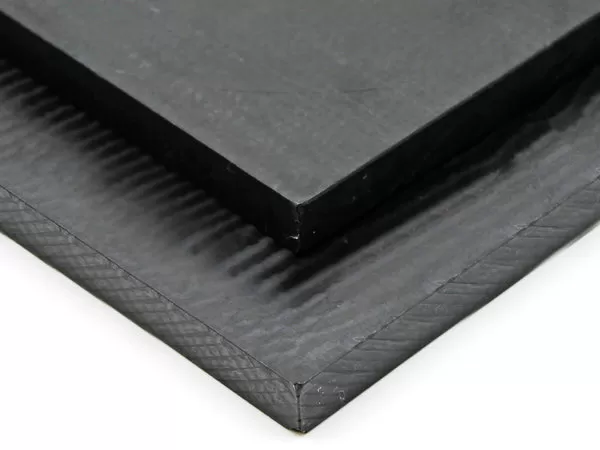

PEEK Carbon Fiber Reinforced Material
Black PEEK generally means carbon fiber-reinforced PEEK, which is a composite material made by combining polyetheretherketone (PEEK) with carbon fibers. This results in a high-performance material that is lightweight, strong, and resistant to heat, chemicals, and wear.
ARKPEEK-1000: 100% PEEK
Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.
ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK
Carbon fibre reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.
ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK
Glass filled PEEK exhibits increased mechanical strength and high rigidity. Improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.
ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10% Graphite
high performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range of PEEK Rod is from -30°C to 250°C and has a short term maximum service temperature of 310°C.

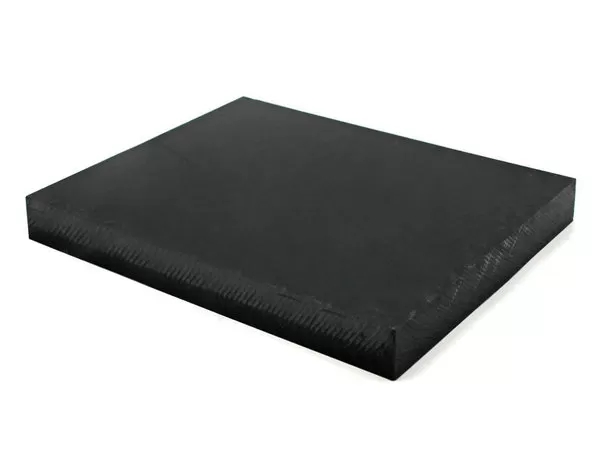

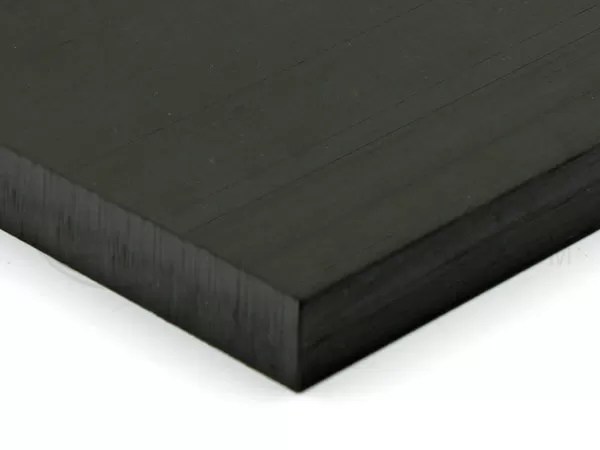

Carbon Fiber Reinforced PEEK Sheet Size
NO. | Dimension (mm) | Weight ( g ) |
1 | 0.5*700*1000 | 480 |
2 | 1*700*1000 | 950 |
3 | 2*700*1000 | 1900 |
4 | 3*700*1000 | 2800 |
5 | 4*650*1000 | 3400 |
6 | 5*650*1000 | 4300 |
7 | 67×31×1000 | 2700 |
8 | 80x15x1000 | 1560 |
9 | 100x25x1000 | 3100 |
10 | 120x38x1000 | 5500 |
11 | 195×33×1000 | 8365 |
12 | 175x162×1000 | 36855 |
13 | 395x12.5x1000 | 6419 |
14 | 422x15x1000 | 8229 |
15 | 422x66x1000 | 36207 |
16 | Insulation block (with Utype)280x45x1000 | 15000 |
17 | 600×6x1000 | 4680 |
18 | 600x8×1000 | 6240 |
19 | 600×9×1000 | 7020 |
20 | 600x15x1000 | 11700 |
21 | 600×20x1000 | 15600 |
22 | 600×25×1000 | 19500 |
23 | 600x30x1000 | 23400 |
24 | 600x35×1000 | 27300 |
25 | 600×40×1000 | 31200 |
26 | 600x45x1000 | 35100 |
27 | 600x50×1000 | 39000 |
28 | 600x60x1000 | 46800 |
29 | 800x20x1000 | 20800 |
30 | 800x30x1000 | 31200 |
