PEEK Material Performance

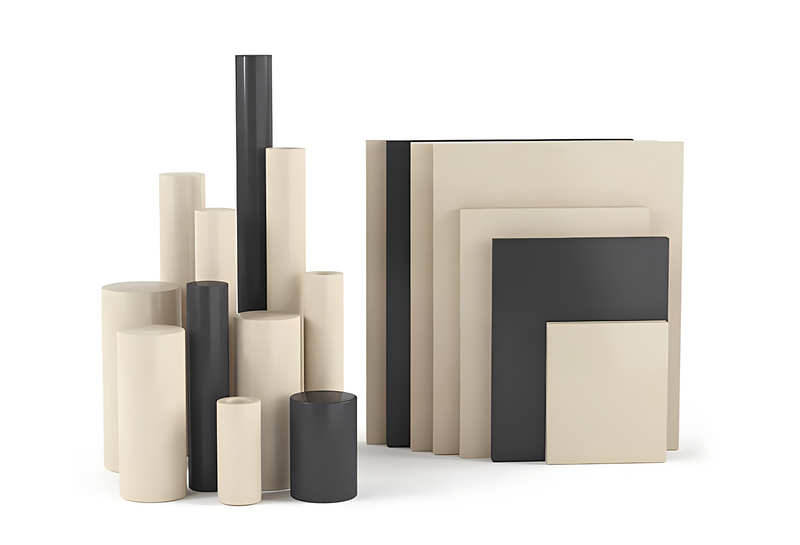

PEEK Board: Engineered Excellence in Plastic. PEEK Board is a high-performance engineering plastic known for its exceptional mechanical strength, thermal stability, and chemical resistance. It redefines precision and durability, making it the ideal choice for demanding engineering applications. Elevate your projects with PEEK Board, the pinnacle of engineering plastics.
ARKPEEK-1000: 100% PEEK
Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.
ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK
Carbon fibre reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.
ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK
Glass filled PEEK exhibits increased mechanical strength and high rigidity. Improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.
ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10% Graphite
high performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range of PEEK Rod is from -30°C to 250°C and has a short term maximum service temperature of 310°C.
NO. | Dimension (mm) | Weight ( g ) |
1 | 0.5*700*1000 | 480 |
2 | 1*700*1000 | 950 |
3 | 2*700*1000 | 1900 |
4 | 3*700*1000 | 2800 |
5 | 4*650*1000 | 3400 |
6 | 5*650*1000 | 4300 |
7 | 67×31×1000 | 2700 |
8 | 80x15x1000 | 1560 |
9 | 100x25x1000 | 3100 |
10 | 120x38x1000 | 5500 |
11 | 195×33×1000 | 8365 |
12 | 175x162×1000 | 36855 |
13 | 395x12.5x1000 | 6419 |
14 | 422x15x1000 | 8229 |
15 | 422x66x1000 | 36207 |
16 | Insulation block (with Utype)280x45x1000 | 15000 |
17 | 600×6x1000 | 4680 |
18 | 600x8×1000 | 6240 |
19 | 600×9×1000 | 7020 |
20 | 600x15x1000 | 11700 |
21 | 600×20x1000 | 15600 |
22 | 600×25×1000 | 19500 |
23 | 600x30x1000 | 23400 |
24 | 600x35×1000 | 27300 |
25 | 600×40×1000 | 31200 |
26 | 600x45x1000 | 35100 |
27 | 600x50×1000 | 39000 |
28 | 600x60x1000 | 46800 |
29 | 800x20x1000 | 20800 |
30 | 800x30x1000 | 31200 |
