PEEK Tubing

_______________________________________________________________________________________________________________________________________________________________________

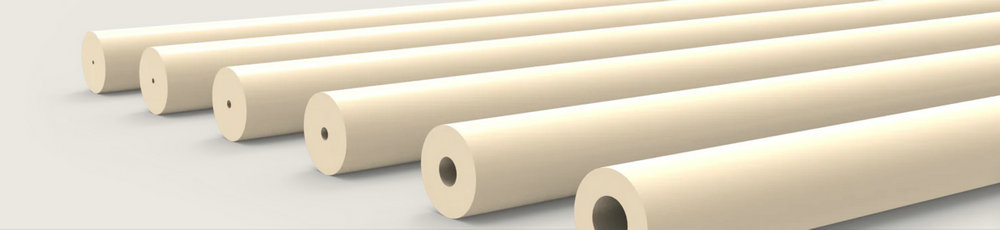

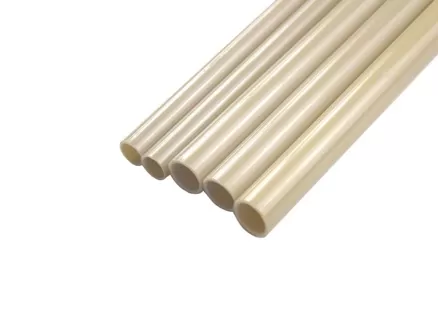

ARKPEEK Tubing – Precision Engineered for Every Application

Discover the complete range of ARKPEEK tubing, available in four specialized materials to meet your exact technical requirements. Whether you need standard PEEK tubing sizes for HPLC connections or custom solutions for extreme environments, our CF30, GF30, MOD, and 1000 formulations deliver unmatched performance.

Material Options & Key Properties

ARKPEEK-1000 (Virgin PEEK):

Ultra-pure, unfilled material for critical applications

10,000+ psi pressure rating

Ideal for: HPLC/UHPLC, biopharma, semiconductor

ARKPEEK-CF30 (30% Carbon Fiber Filled):

Maximum strength & stiffness

15,000+ psi pressure capability

Perfect for: High-pressure hydraulics, aerospace, automotive

ARKPEEK-GF30 (30% Glass Fiber Filled):

Enhanced dimensional stability

12,000+ psi pressure rating

Best for: Industrial fluid systems, chemical processing

ARKPEEK-MOD (Modified Formula):

Optimized wear resistance

8,000+ psi pressure capacity

Designed for: Moving parts, bearing surfaces, robotics

Technical Advantages

Full Size Range: From microbore (0.5mm ID) to large-diameter tubing

Extreme Pressure Ratings: Up to 15,000 psi for demanding fluid systems

Temperature Resistance: -50°C to 260°C continuous operation

Chemical Compatibility: Resists acids, bases, solvents, and hydrocarbons

Specialized Applications

HPLC/UHPLC Systems: Low-dead-volume connections with ultra-pure ARKPEEK-1000

Medical Devices: Biocompatible tubing for surgical instruments and implants

Industrial Automation: Wear-resistant MOD formula for robotic fluidics

Energy Sector: CF30 tubing for high-pressure oil/gas applications

Why Choose ARKPEEK Tubing?

Material Expertise: Select from 4 engineered formulations

Precision Manufacturing: Tight tolerances (±0.02mm) for all PEEK tubing sizes

Global Certifications: FDA, USP Class VI, ISO 9001, REACH compliant

Technical Support: Get help selecting the right material and size available in:

Standard sizes: 1/16", 1/8", 1/4" OD with various wall thicknesses

Custom sizes and lengths upon request

Cleanroom packaged for sensitive applications
