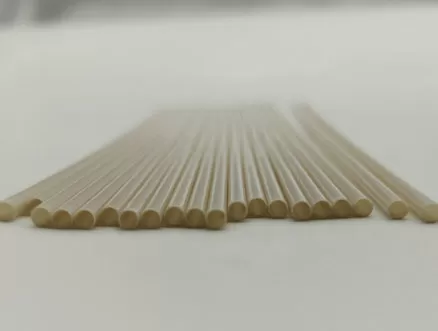

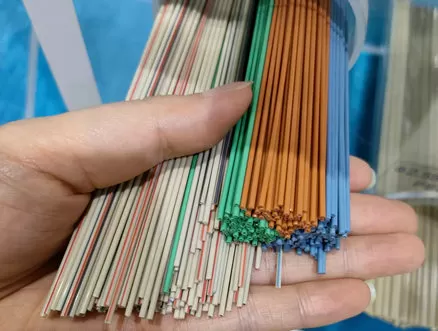

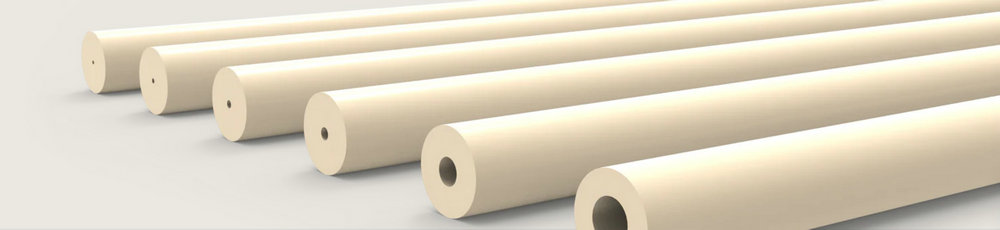

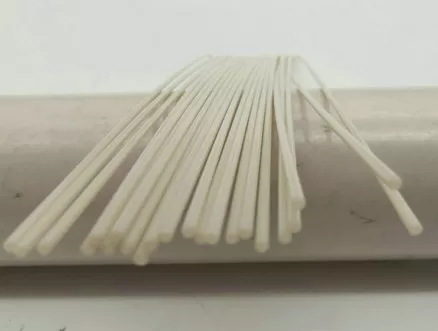

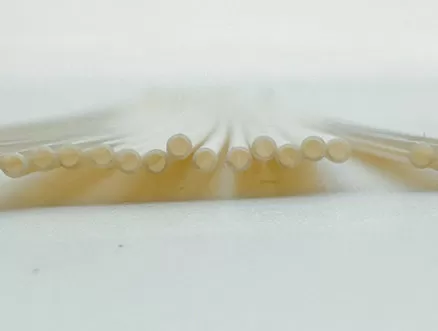

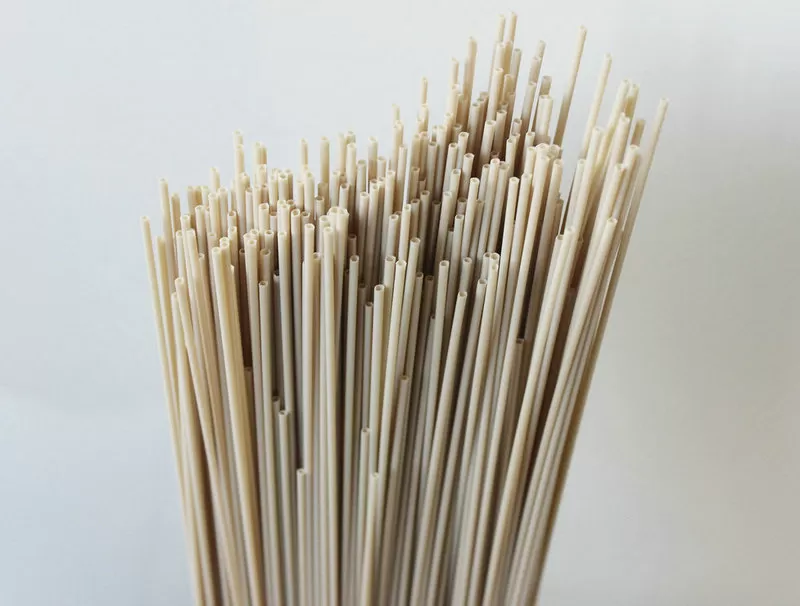

Peek Capillary Tubing

PEEK In Tubing

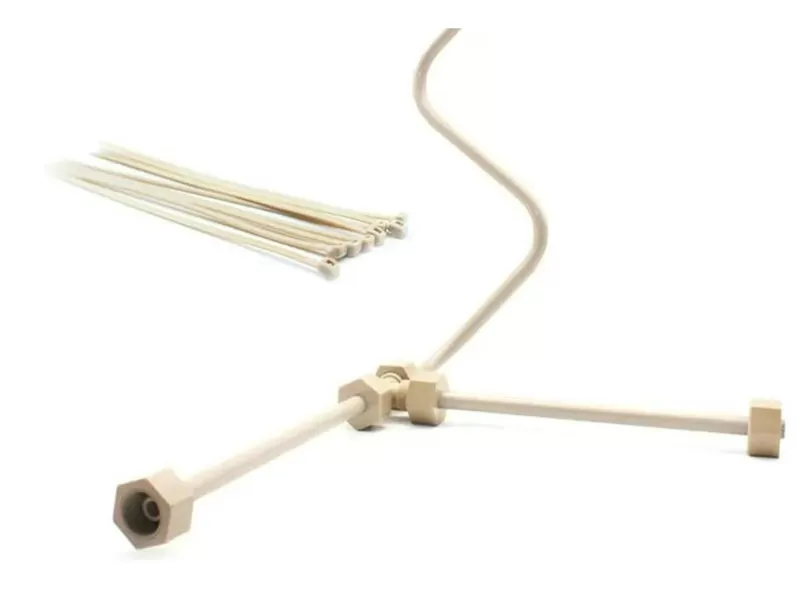

PEEK is an inert fluoropolymer, with high chemical compatibility and a working temperature range of -50 °C up to +250 °C. This PEEK capillary tubing can be used in a microfluidic system for demanding applications with high pressure or aggressive fluids, but also as a fluidic resistance.


MATERIAL GRADE

ARKPEEK-1000: 100%PEEK

Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.

ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK

Carbon fiber reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.

ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK

Glass filled PEEK exhibits increased mechanical strength and high rigidity. improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.

ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10%  Graphite

high performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range of PEEK Rod is from -30°C to 250°C and has a short term maximum service temperature of 310°C.


Size Table

Product specifications
NameODID
PEEK Capillary1(±0.05)0.45(±0.05)
1/16"PEEK CapillaryΦ1.5-Φ1.60Φ0.13
1/16"PEEK CapillaryΦ1.5-Φ1.60Φ0.25
1/16"PEEK CapillaryΦ1.5-Φ1.60Φ0.50
1/16"PEEK CapillaryΦ1.5-Φ1.60Φ0.75
1/16"PEEK CapillaryΦ1.5-Φ1.60Φ1.25
PEEK CapillaryΦ1.7-Φ1.8Φ0.66-Φ0.8
PEEK CapillaryΦ2.5Φ1.5
PEEK CapillaryΦ2.5Φ1.9
PEEK CapillaryΦ2.45Φ2.1
1/8"PEEK CapillaryΦ3.10-Φ3.22Φ1.00
1/8"PEEK CapillaryΦ3.10-Φ3.22Φ1.60
PEEK CapillaryΦ4Φ3.4
PEEK CapillaryΦ4.5Φ2.5
PEEK CapillaryΦ20.5Φ16.5
PEEK CapillaryΦ12Φ11
PEEK CapillaryΦ11Φ7.5
PEEK CapillaryΦ6Φ4
PEEK CapillaryΦ19.8Φ16.5
