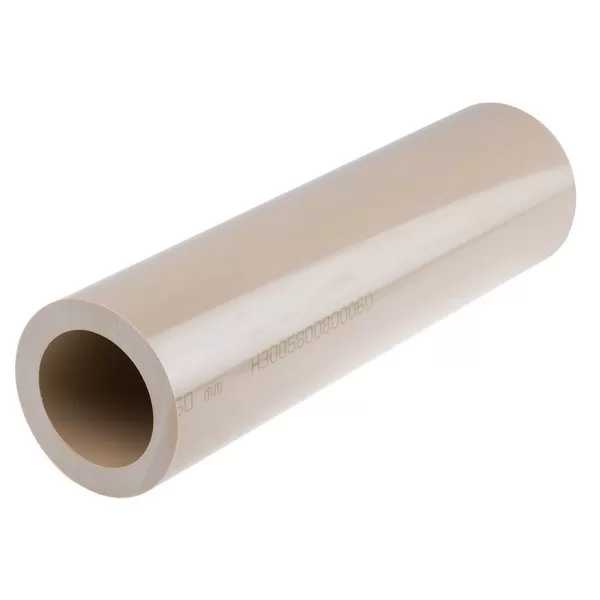

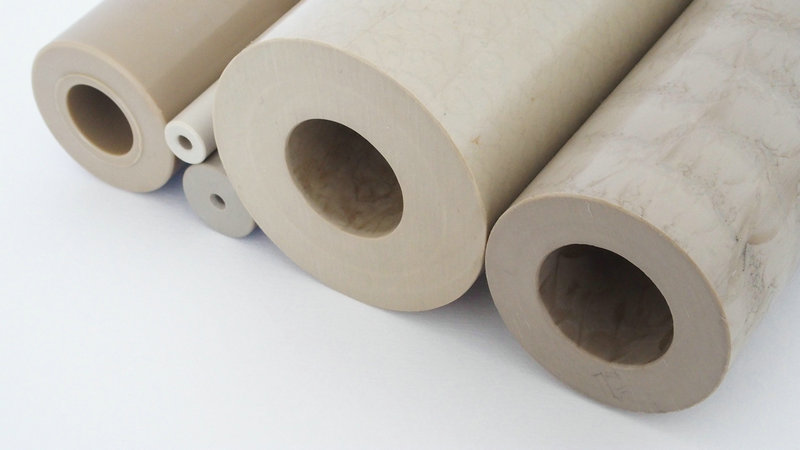

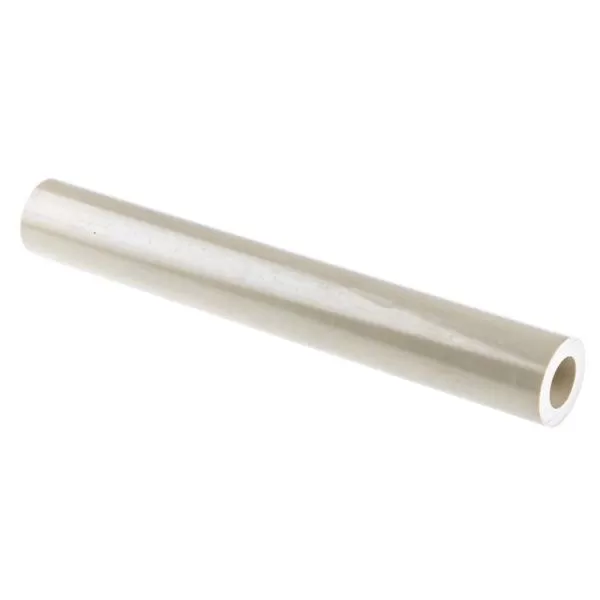

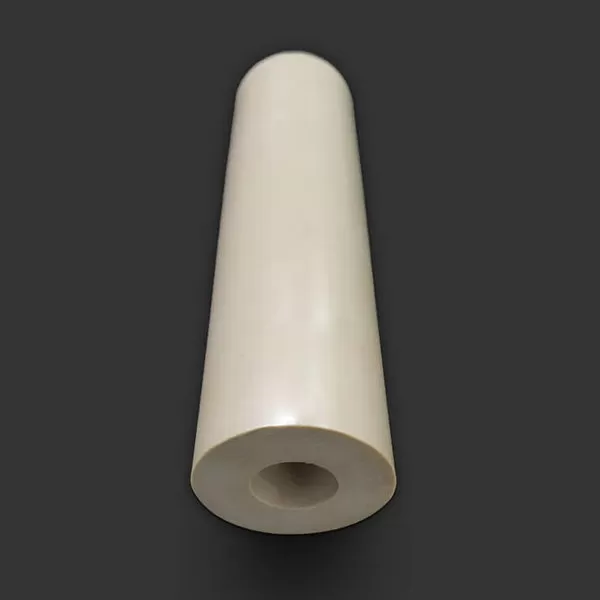

PEEK Tube Pipe:

PEEK (Polyether Ether Ketone) tube pipe is a high-performance product designed for applications requiring exceptional strength, thermal stability, and chemical resistance. These tubes are ideal for use in demanding environments such as aerospace, oil and gas, and chemical processing industries. PEEK tube pipes maintain their mechanical properties at high temperatures and under harsh chemical exposure, making them suitable for use as fluid transfer lines, insulation sleeves, and structural components in extreme conditions. Their excellent wear resistance and low friction coefficient also make them perfect for applications involving dynamic movements and high-stress conditions.

PEEK Data Structure

Inquire Now Next Products

MATERIAL GRADE

PEEK (Polyether Ether Ketone) pipe tube is engineered for advanced applications where traditional materials fail. Known for its superior mechanical strength, PEEK tube pipe is perfect for high-temperature and high-pressure environments, commonly found in the automotive and aerospace sectors. Its excellent chemical resistance ensures longevity and reliability in corrosive environments, such as those in chemical processing plants. The tubes are lightweight yet durable, offering a combination of low friction and high wear resistance, which makes them suitable for precision components, including bearings, bushings, and protective casings in various industrial applications.

ARKPEEK-1000: 100%PEEK

Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.

ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK

Carbon fiber reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.

ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK

Glass filled PEEK exhibits increased mechanical strength and high rigidity. improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.

ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10% Graphite

high performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range of PEEK Rod is from -30°C to 250°C and has a short term maximum service temperature of 310°C.

Size Table

NO.	Dimension OD*ID (mm)	Weight ( g )
1	∅1.6∅0.131000	2.6
2	∅1.6∅0.251000	2.5
3	∅1.6∅0.51000	2.4
4	∅1.6∅0.751000	2.0
5	∅1.6∅11000	1.6
6	∅2.33∅1.61000	2.9
7	∅2.8∅2.51000	1.6
8	∅3∅2.671000	1.9
9	∅3.2∅11000	9.4
10	∅3.2∅1.61000	7.8
11	∅5∅2.51000	19.1
12	∅5∅4.51000	5.8
13	∅7.5∅41000	42.6
14	∅10.2∅81000	40.9
15	∅12∅41000	81.6
16	∅12.45∅8.881000	77.7
17	∅29∅181000	527.6
18	∅39∅311000	571.5
19	∅80∅301000	5612.8
20	∅90∅401000	6633.3
21	∅100∅501000	7653.8
22	∅110∅601000	8674.3
23	∅130∅601000	13572.7
24	∅140∅801000	13470.6
25	∅160∅901000	17858.8
26	∅168∅1321000	11021.0
27	∅180∅1101000	20716.2
28	∅190∅1301000	19593.6
29	∅190∅1401000	16838.3
30	∅200∅1301000	23573.6
31	∅220∅1501000	26431.0
32	∅240∅1701000	29288.4
33	∅257∅2301000	13418.6
34	∅250∅1901000	26941.0
35	∅260∅2101000	23981.8
36	∅280∅2101000	35003.2
37	∅280∅2301000	26022.0
38	∅300∅2501000	28063.8
39	∅320∅3001000	12654.2
40	∅340∅2501000	54188.6
41	∅360∅2801000	52249.6
42	∅580∅4501000	136645.0
