PEEK Material Performance
Food Grade PEEK are high-performance polymers for use in food, beverage, and water processing equipments. Compliant with major food contact regulations and standards, it's suited for demanding environments supporting multiple requirements for safety, quality and regulatory compliance of the industry – ensuring that customers only taste what they are supposed to taste.
ARKPEEK-1000: 100%PEEK
Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.
ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK
Carbon fiber reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.
ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK
Glass filled PEEK exhibits increased mechanical strength and high rigidity. improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.
ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10% Graphite
high performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range of PEEK Rod is from -30°C to 250°C and has a short term maximum service temperature of 310°C.

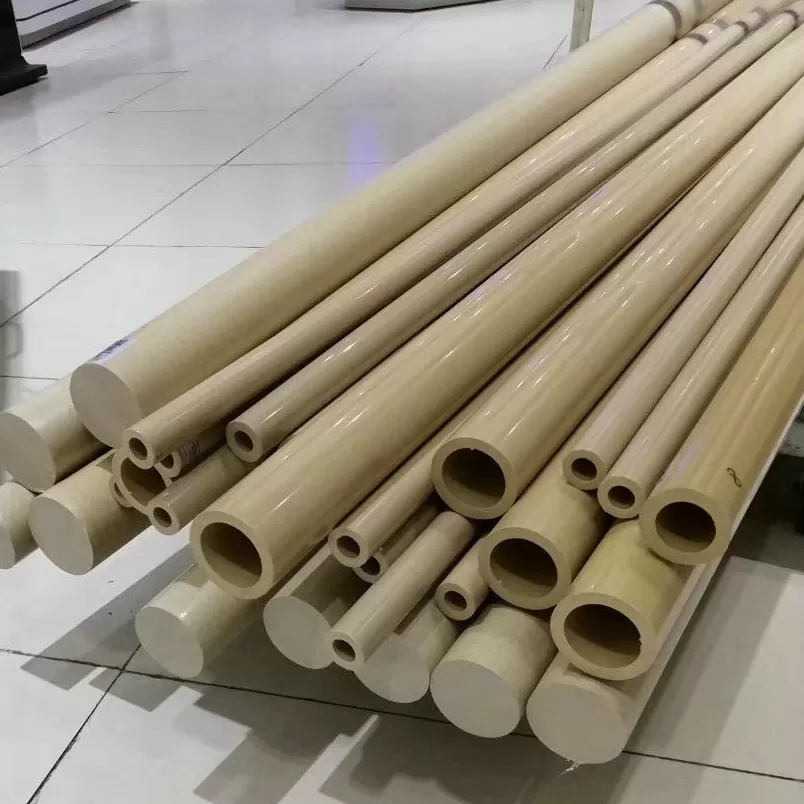

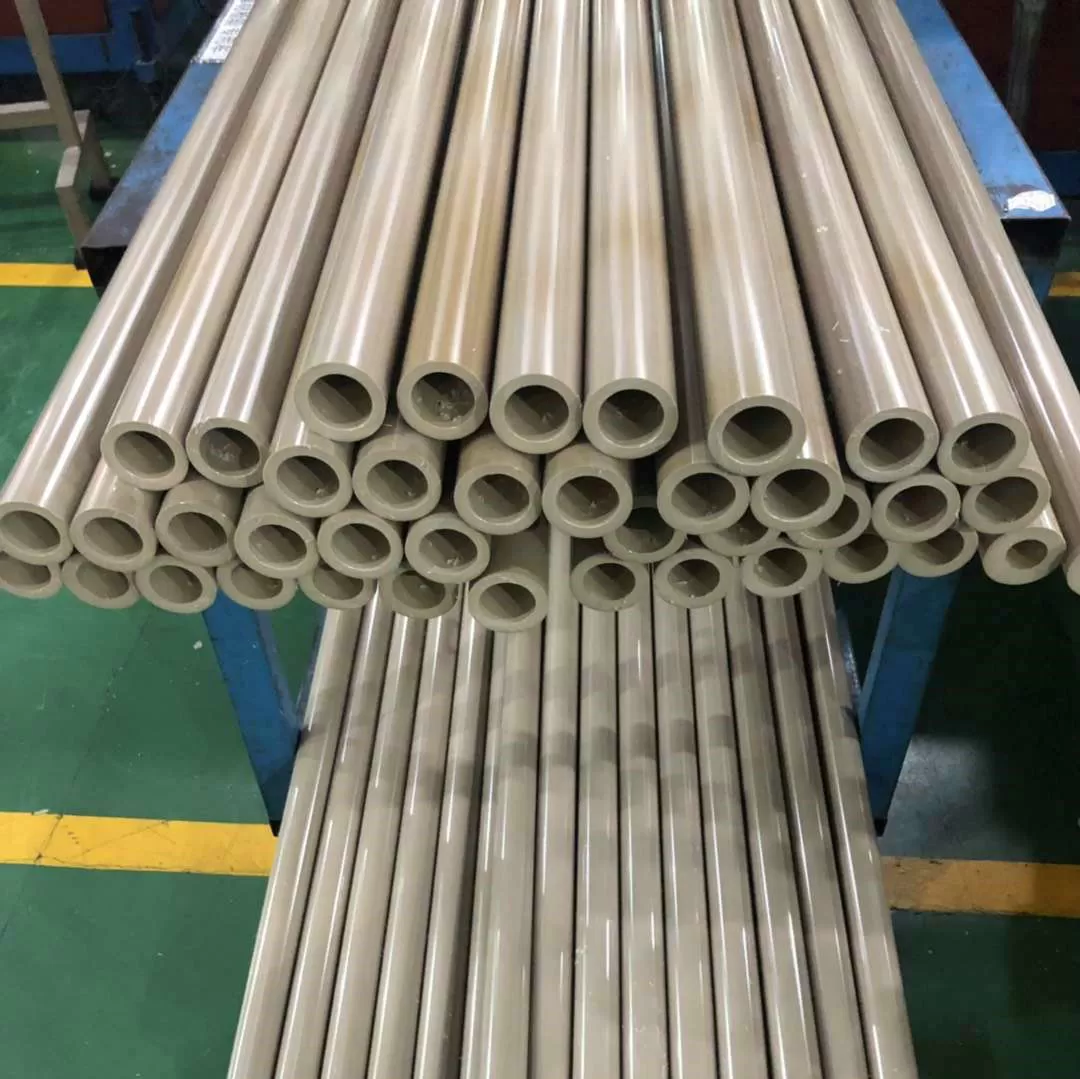

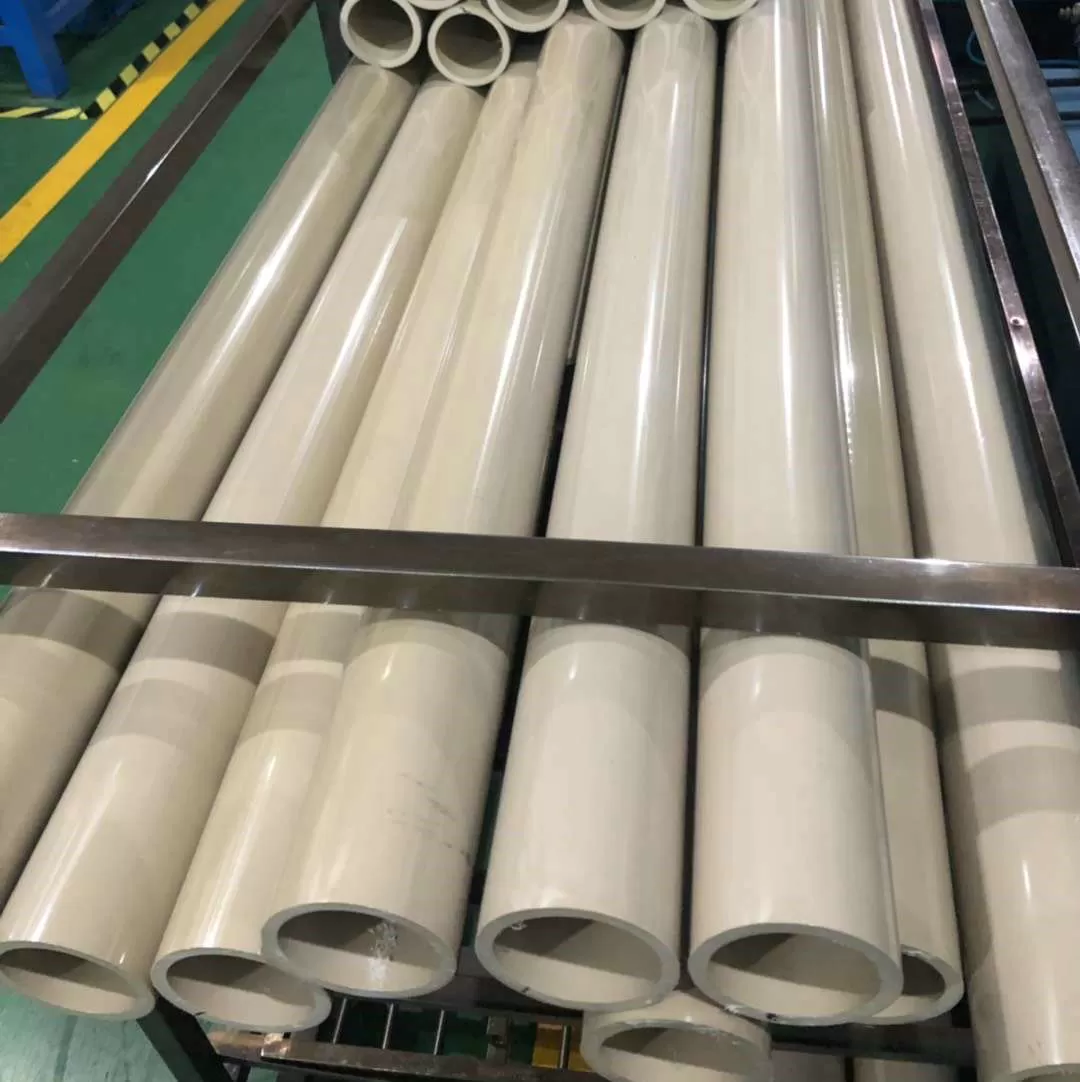

Size Table
| NO. | Dimension OD*ID (mm) | Weight ( g ) |
| 1 | ∅1.6*∅0.13*1000 | 2.6 |
| 2 | ∅1.6*∅0.25*1000 | 2.5 |
| 3 | ∅1.6*∅0.5*1000 | 2.4 |
| 4 | ∅1.6*∅0.75*1000 | 2.0 |
| 5 | ∅1.6*∅1*1000 | 1.6 |
| 6 | ∅2.33*∅1.6*1000 | 2.9 |
| 7 | ∅2.8*∅2.5*1000 | 1.6 |
| 8 | ∅3*∅2.67*1000 | 1.9 |
| 9 | ∅3.2*∅1*1000 | 9.4 |
| 10 | ∅3.2*∅1.6*1000 | 7.8 |
| 11 | ∅5*∅2.5*1000 | 19.1 |
| 12 | ∅5*∅4.5*1000 | 5.8 |
| 13 | ∅7.5*∅4*1000 | 42.6 |
| 14 | ∅10.2*∅8*1000 | 40.9 |
| 15 | ∅12*∅4*1000 | 81.6 |
| 16 | ∅12.45*∅8.88*1000 | 77.7 |
| 17 | ∅29*∅18*1000 | 527.6 |
| 18 | ∅39*∅31*1000 | 571.5 |
| 19 | ∅80*∅30*1000 | 5612.8 |
| 20 | ∅90*∅40*1000 | 6633.3 |
| 21 | ∅100*∅50*1000 | 7653.8 |
| 22 | ∅110*∅60*1000 | 8674.3 |
| 23 | ∅130*∅60*1000 | 13572.7 |
| 24 | ∅140*∅80*1000 | 13470.6 |
| 25 | ∅160*∅90*1000 | 17858.8 |
| 26 | ∅168*∅132*1000 | 11021.0 |
| 27 | ∅180*∅110*1000 | 20716.2 |
| 28 | ∅190*∅130*1000 | 19593.6 |
| 29 | ∅190*∅140*1000 | 16838.3 |
| 30 | ∅200*∅130*1000 | 23573.6 |
| 31 | ∅220*∅150*1000 | 26431.0 |
| 32 | ∅240*∅170*1000 | 29288.4 |
| 33 | ∅257*∅230*1000 | 13418.6 |
| 34 | ∅250*∅190*1000 | 26941.0 |
| 35 | ∅260*∅210*1000 | 23981.8 |
| 36 | ∅280*∅210*1000 | 35003.2 |
| 37 | ∅280*∅230*1000 | 26022.0 |
| 38 | ∅300*∅250*1000 | 28063.8 |
| 39 | ∅320*∅300*1000 | 12654.2 |
| 40 | ∅340*∅250*1000 | 54188.6 |
| 41 | ∅360*∅280*1000 | 52249.6 |
| 42 | ∅580*∅450*1000 | 136645.0 |
