Bearing PEEK Material Performance

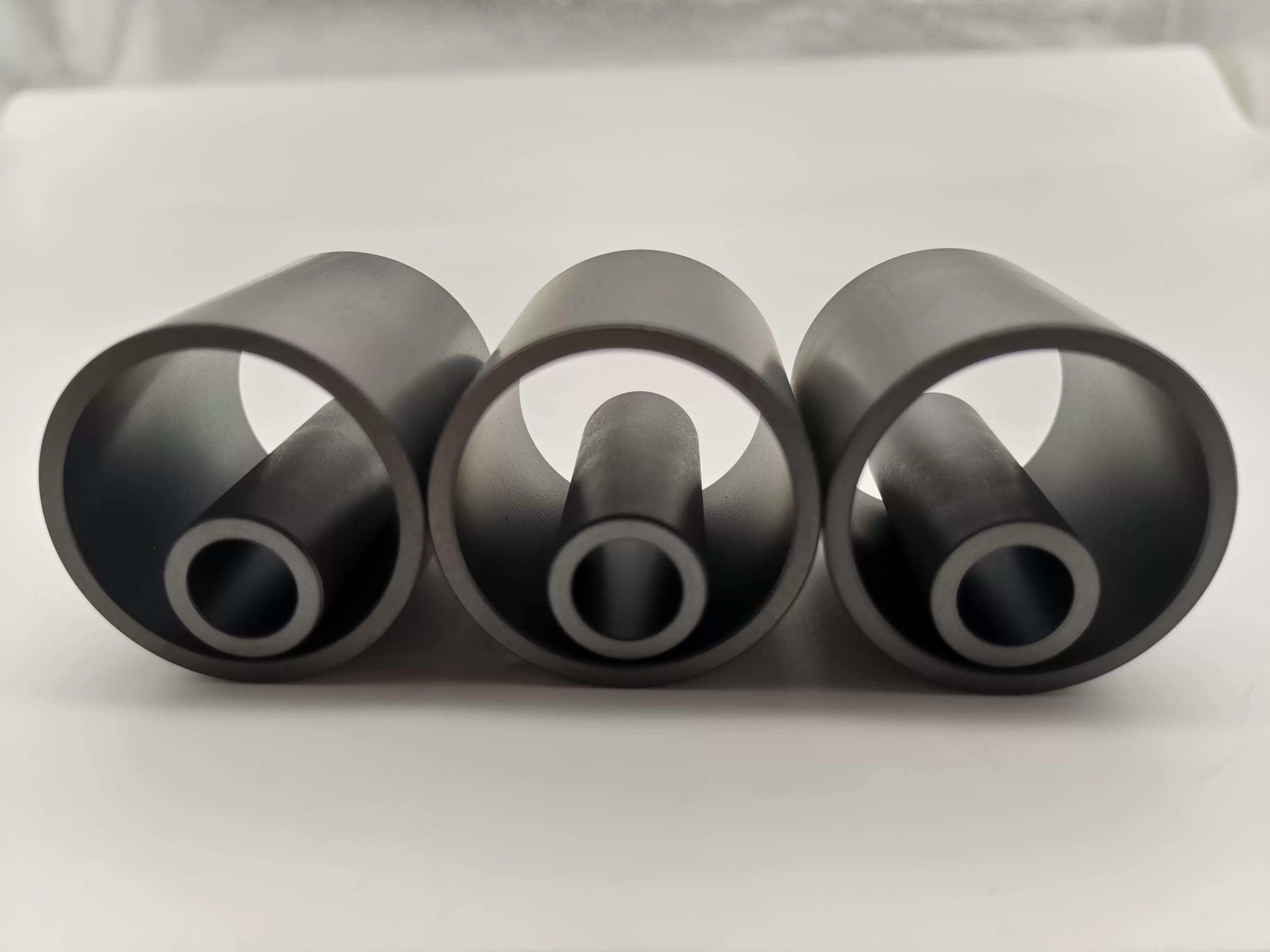

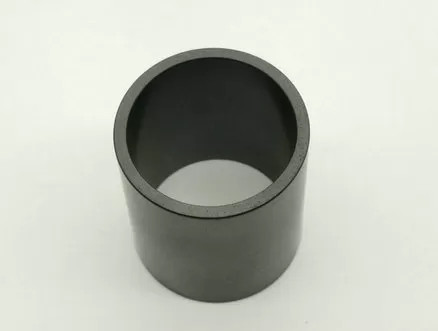

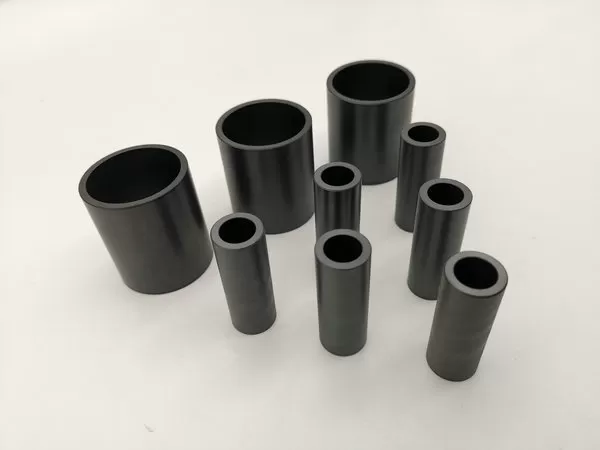

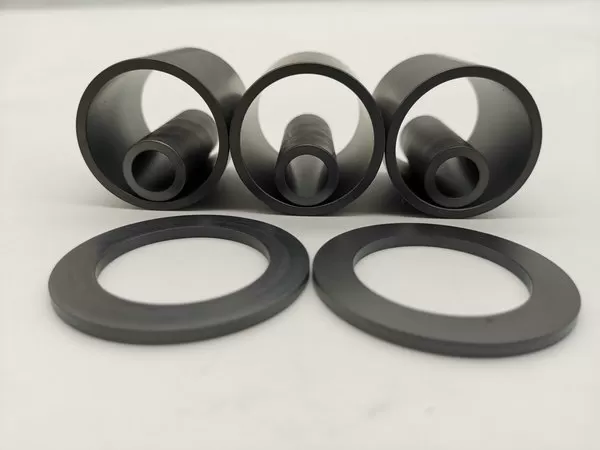

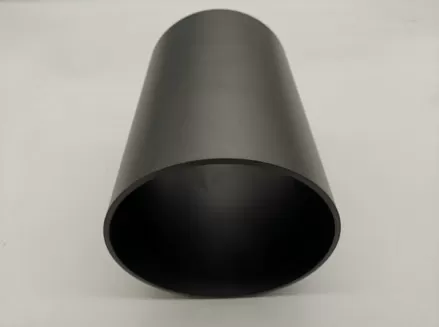

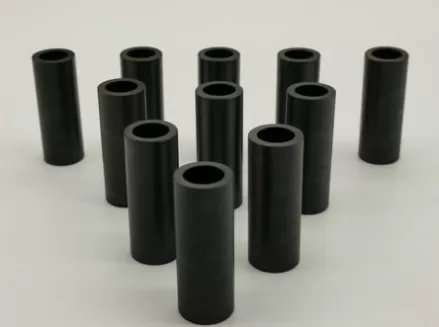

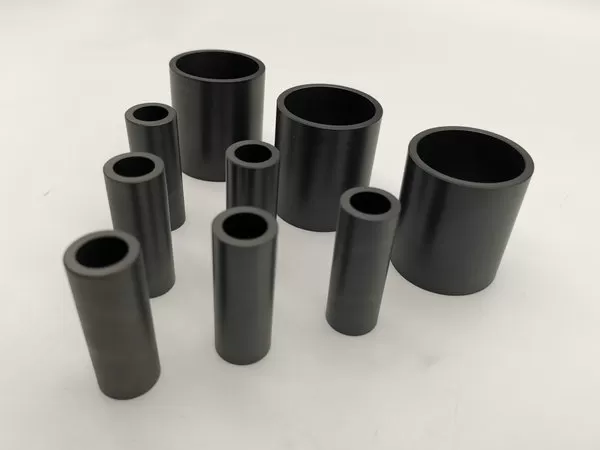

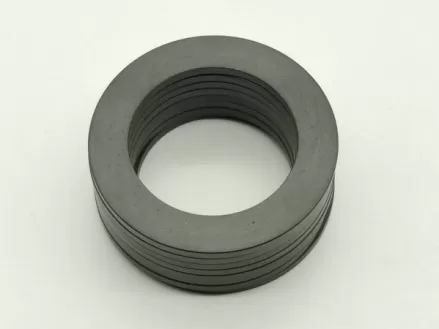

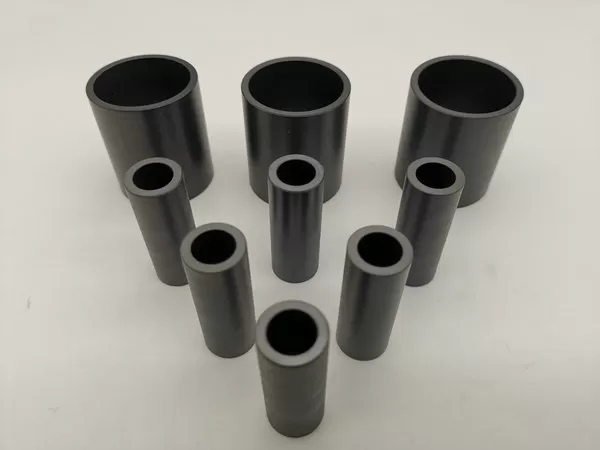

Experience the superior performance of composite PEEK plain and sleeve bearings. These high-performance bearings combine the strength and durability of composite materials with the low-friction properties of PEEK, resulting in exceptional wear resistance, self-lubrication, and extended service life. Whether it's in demanding industrial applications or precision machinery, these composite PEEK bearings deliver reliable and smooth motion, ensuring optimal performance and reduced maintenance.
ARKPEEK-1000: 100% PEEK
Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.
ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK
Carbon fiber reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.
ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK
Glass filled PEEK exhibits increased mechanical strength and high rigidity. improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.
ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10% Graphite + 70% PEEK
High performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range of PEEK Rod is from -30°C to 250°C and has a short term maximum service temperature of 310°C.
Size Table
| NO. | Dimension OD*ID (mm) | Weight ( g ) |
| 1 | ∅1.6*∅0.13*1000 | 2.6 |
| 2 | ∅1.6*∅0.25*1000 | 2.5 |
| 3 | ∅1.6*∅0.5*1000 | 2.4 |
| 4 | ∅1.6*∅0.75*1000 | 2.0 |
| 5 | ∅1.6*∅1*1000 | 1.6 |
| 6 | ∅2.33*∅1.6*1000 | 2.9 |
| 7 | ∅2.8*∅2.5*1000 | 1.6 |
| 8 | ∅3*∅2.67*1000 | 1.9 |
| 9 | ∅3.2*∅1*1000 | 9.4 |
| 10 | ∅3.2*∅1.6*1000 | 7.8 |
| 11 | ∅5*∅2.5*1000 | 19.1 |
| 12 | ∅5*∅4.5*1000 | 5.8 |
| 13 | ∅7.5*∅4*1000 | 42.6 |
| 14 | ∅10.2*∅8*1000 | 40.9 |
| 15 | ∅12*∅4*1000 | 81.6 |
| 16 | ∅12.45*∅8.88*1000 | 77.7 |
| 17 | ∅29*∅18*1000 | 527.6 |
| 18 | ∅39*∅31*1000 | 571.5 |
| 19 | ∅80*∅30*1000 | 5612.8 |
| 20 | ∅90*∅40*1000 | 6633.3 |
| 21 | ∅100*∅50*1000 | 7653.8 |
| 22 | ∅110*∅60*1000 | 8674.3 |
| 23 | ∅130*∅60*1000 | 13572.7 |
| 24 | ∅140*∅80*1000 | 13470.6 |
| 25 | ∅160*∅90*1000 | 17858.8 |
| 26 | ∅168*∅132*1000 | 11021.0 |
| 27 | ∅180*∅110*1000 | 20716.2 |
| 28 | ∅190*∅130*1000 | 19593.6 |
| 29 | ∅190*∅140*1000 | 16838.3 |
| 30 | ∅200*∅130*1000 | 23573.6 |
| 31 | ∅220*∅150*1000 | 26431.0 |
| 32 | ∅240*∅170*1000 | 29288.4 |
| 33 | ∅257*∅230*1000 | 13418.6 |
| 34 | ∅250*∅190*1000 | 26941.0 |
| 35 | ∅260*∅210*1000 | 23981.8 |
| 36 | ∅280*∅210*1000 | 35003.2 |
| 37 | ∅280*∅230*1000 | 26022.0 |
| 38 | ∅300*∅250*1000 | 28063.8 |
| 39 | ∅320*∅300*1000 | 12654.2 |
| 40 | ∅340*∅250*1000 | 54188.6 |
| 41 | ∅360*∅280*1000 | 52249.6 |
| 42 | ∅580*∅450*1000 | 136645.0 |
