PEEK Workpieces

_______________________________________________________________________________________________________________________________________________________________________

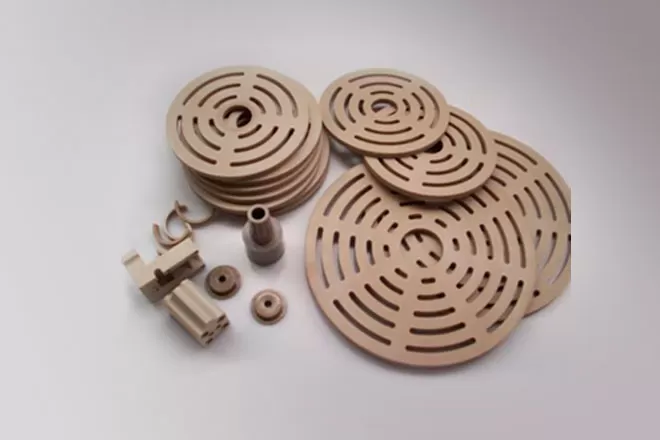

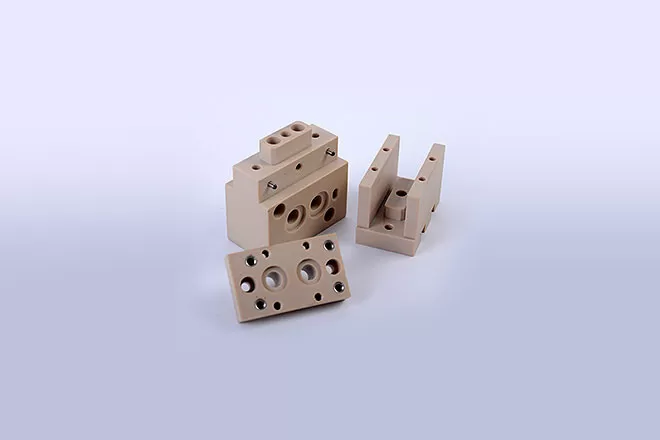

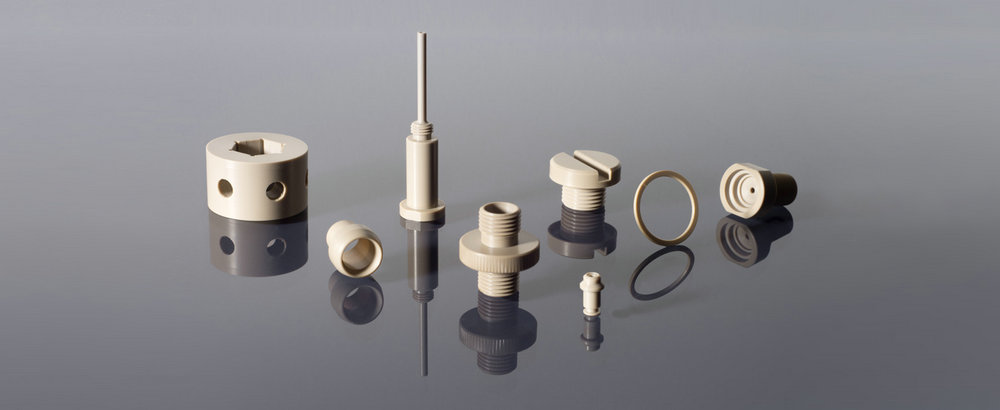

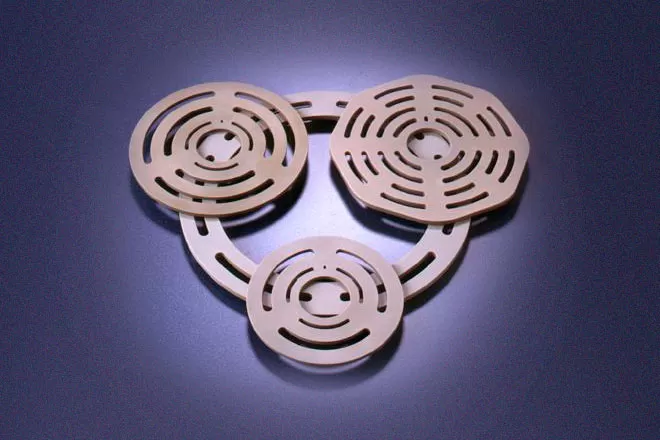

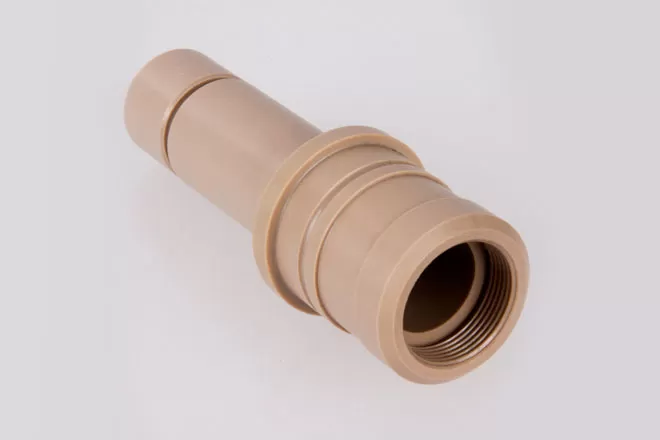

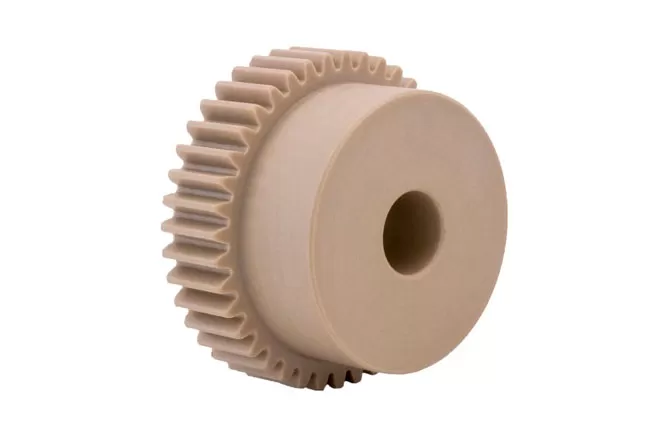

PEEK workpieces made from ARKPEEK represent advanced polymer components engineered for high-performance industrial applications. Manufactured using precision CNC machining or injection molding, these workpieces leverage the exceptional properties of polyetheretherketone (PEEK) to deliver outstanding mechanical strength, chemical inertness, and thermal stability up to 260°C (500°F).

ARKPEEK workpieces maintain dimensional accuracy and mechanical integrity even under harsh conditions involving exposure to aggressive chemicals, high temperatures, and mechanical stress. Their low moisture absorption and excellent wear resistance ensure long service life and consistent performance in critical applications.

Available in various grades including unfilled ARKPEEK-1000, carbon fiber reinforced ARKPEEK-CF30, glass fiber reinforced ARKPEEK-GF30, and modified ARKPEEK-MOD, these workpieces can be customized to meet specific strength, stiffness, and thermal conductivity requirements.

Typical applications span aerospace structural components, medical device parts, automotive engine and transmission elements, electrical insulation components, and industrial machinery parts exposed to corrosive environments.

Key benefits include:

Precision Manufacturing: Tight tolerances and complex geometries achievable for custom solutions.

Chemical and Thermal Resistance: Withstands acids, solvents, steam, and continuous high temperatures.

Lightweight and Strong: Reduces overall system weight while maintaining durability.

Wear and Fatigue Resistance: Suitable for moving parts and high-cycle applications.

Biocompatibility: Suitable grades available for medical and pharmaceutical uses.

Choosing ARKPEEK PEEK workpieces ensures reliable, long-lasting components that enhance product performance and reduce maintenance costs in the most demanding industrial environments.

_______________________________________________________________________________________________________________________________________________________________________

Material Grades

ARKPEEK-1000: 100% PEEK

Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.

ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK

Carbon fibre reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.

ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK

Glass filled PEEK exhibits increased mechanical strength and high rigidity. improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.

ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10%  Graphite + 70% PEEK

High performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range is from -70°C to 260°C and has a short term maximum service temperature of 310°C.
