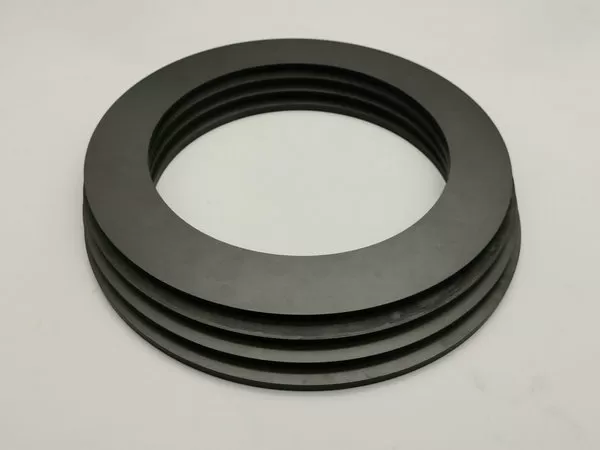

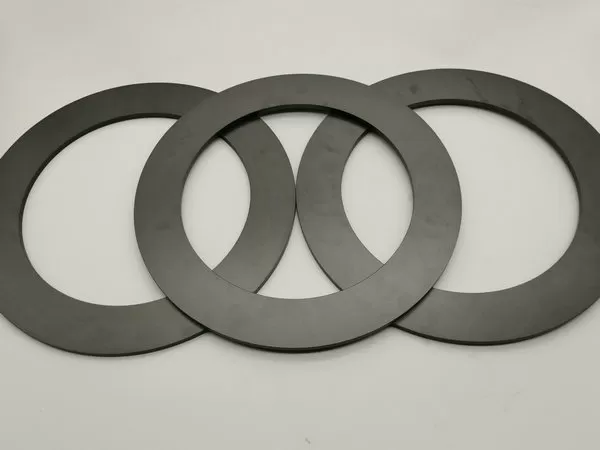

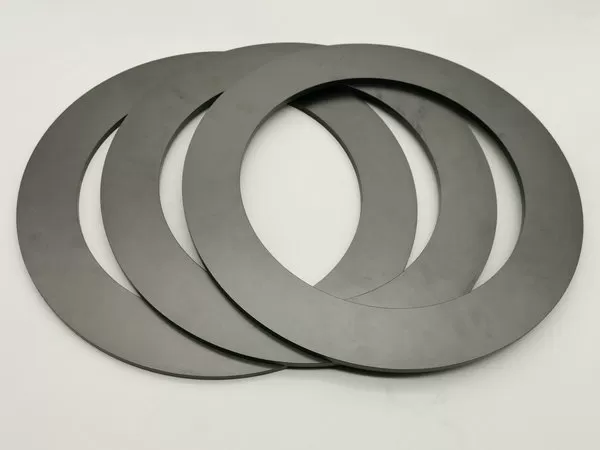

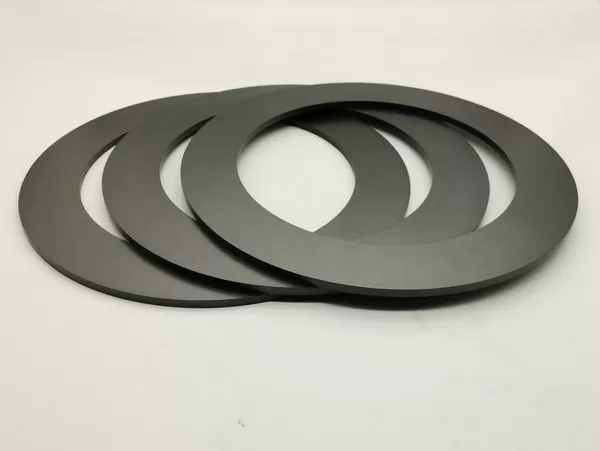

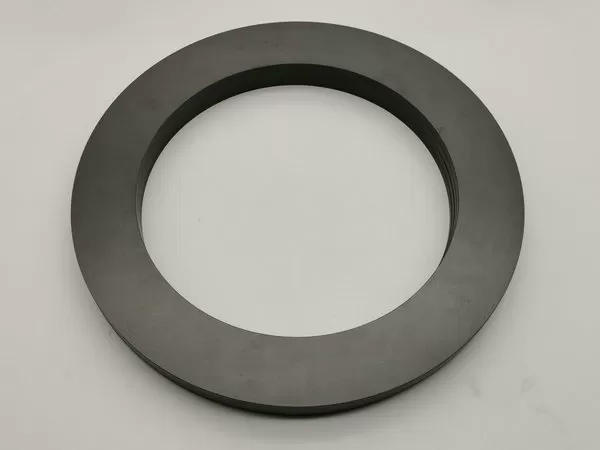

PEEK Thrust Washer Swivel

Designed to meet the demanding needs of industrial applications, the PEEK thrust washer swivel stands out as a versatile and reliable solution. Its advanced engineering ensures superior performance, offering low friction and high wear resistance in rotary systems. Crafted from PEEK, a high-performance polymer material, this bearing component exhibits excellent self-lubricating properties, reducing the need for external lubrication and minimizing maintenance requirements. Moreover, the PEEK thrust washer swivel boasts impressive corrosion resistance, making it ideal for use in challenging environments where exposure to moisture, chemicals, or extreme temperatures is a concern. Count on the PEEK thrust washer swivel to deliver reliable and smooth operation, enhancing the efficiency and longevity of your industrial machinery.

Below PEEK Grades are available.

ARKPEEK-1000: 100% PEEK

Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.

ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK

Carbon fibre reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.

ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK

Glass filled PEEK exhibits increased mechanical strength and high rigidity. improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.

ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10%  Graphite + 70% PEEK

High performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range of PEEK Rod is from -30°C to 250°C and has a short term maximum service temperature of 310°C.
