PEEK Rod




  • PEEK Carbon Filled Rod
  • PEEK Carbon Filled Rod

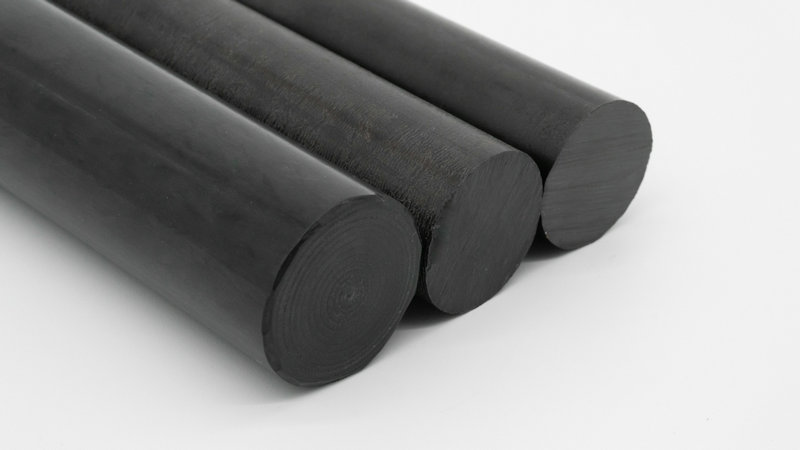

PEEK Carbon Filled Rod

PEEK material performance

Polyetheretherketone (PEEK) is a high-performance, engineering thermoplastic characterized by an unusual combination of properties. These properties range from high temperature performance to mechanical strength and excellent chemical resistance.

PEEK CF 30 rods are made of a 30 percent carbon-filled PEEK substance developed under the tradename ARKPEEK-CF30 black. The structure of the carbon fiber gives the PEEK material a high degree of rigidity and resistance to creep.


MATERIAL GRADE

PEEK Carbon Filled Rods are solid cylindrical components crafted from a composite material blending Polyether Ether Ketone (PEEK) with carbon fibers. This unique combination offers exceptional mechanical strength, stiffness, and wear resistance, while retaining PEEK's renowned chemical resistance and thermal stability. Widely used in aerospace, automotive, and medical industries, PEEK Carbon Filled Rods excel in applications requiring lightweight yet durable components. From structural supports to precision machinery parts, these rods deliver reliable performance under demanding conditions, making them indispensable in modern engineering.


ARKPEEK-1000: 100% PEEK

Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.

ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK

Carbon fibre reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.

ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK

Glass filled PEEK exhibits increased mechanical strength and high rigidity. improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.

ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10%  Graphite

high performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range of PEEK Rod is from -30°C to 250°C and has a short term maximum service temperature of 310°C.


NumberRod diameter(mm)Weight per meter ( g )Dimension tolerance mm
ARKPEEK-1000ARKPEEK-CF30ARKPEEK-GF30ARKPEEK-MOD
15313334320~0.2
26424647450~0.2
37556163590~0.2
48707880750~0.2
5101071191231150~0.2
6121521691751630~0.2
7152352612702520~0.2
8183363743873610~0.2
9204134604764450~0.2
10224995565755370~0.2
11254995565755370~0.2
12286637367617120~0.5
13308259179488870~0.5
14339431049108510140~0.5
153511361265130712220~0.5
163812751419146713710~0.5
174014991669172516120~o.5
184216581846190917830~0.5
194518252033210219640~1
204821022330240922500~1
215023862648273825570~1
225325862881297927830~1
235529023232334331220~1
246031223478359733590~1
256536994133427439910~1
267043174864503046980~2
278050555632582554400~2
288565867340759170890~2
299074288279856279950~2
309583219275959389570~2
311009265103281068299730~2
32110102601143811830110450~2
33120124031382814303133530~2
34130147501644617011158810~2
35140173011929119955186280~3
36150200572236523134215950~3
37160230162566626549247830~3
38165261802919430199281890~3
39180278383104432112299750~3
40200331493696438206356630~3
41220494775517657046532470~3
42250638667122673649687430~3
