Color PEEK Tubing

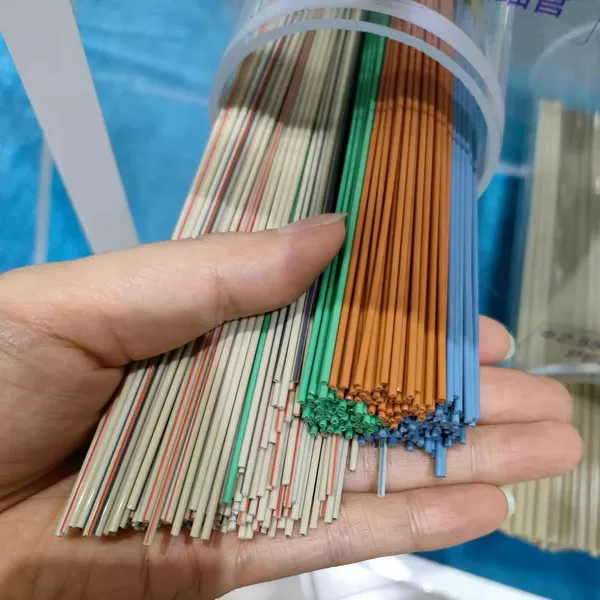

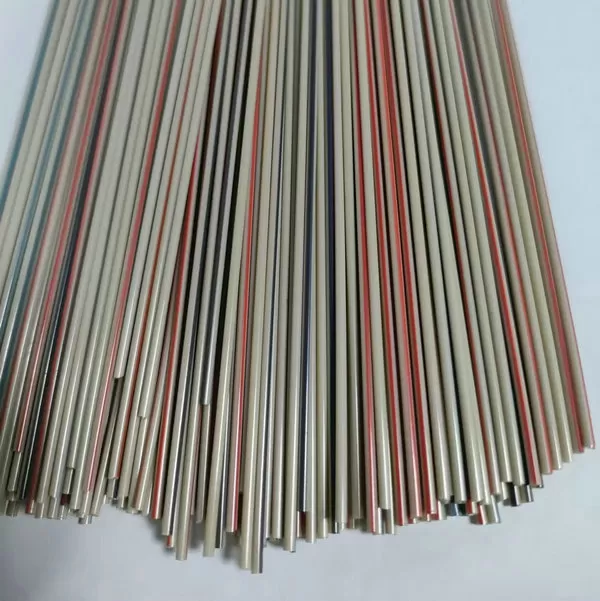

ARK-BioPEEK Colored PEEK Tubing Meets HPLC PEEK Tubing Color Code

Our customized color PEEK tubing is the perfect solution for HPLC and medical devices. Made from high-quality polyetheretherketone (PEEK) material, our tubing is biocompatible, durable, and resistant to high temperatures, chemicals, and radiation. Our tubing is available in a variety of custom colors, allowing you to choose the perfect color to meet your specific needs. Whether you're looking for tubing for medical devices or HPLC applications, our PEEK tubing is a reliable and versatile solution. With excellent chemical resistance and biocompatibility, our tubing is ideal for a wide range of applications. Choose our customized color PEEK tubing for your next project and experience the benefits of high-quality tubing that meets your exact specifications.


BIOMATERIAL PROPERTY

Key Features of Medical PEEK Tubing:

• Ultra hard material

• Very good chemical resistance

• Stable at temperatures up to 228°C

• Excellent abrasion resistance

• Flame retardant (UL94 V-0)

• Very tight dimensional tolerances


Biocompatible PEEK Tubing:

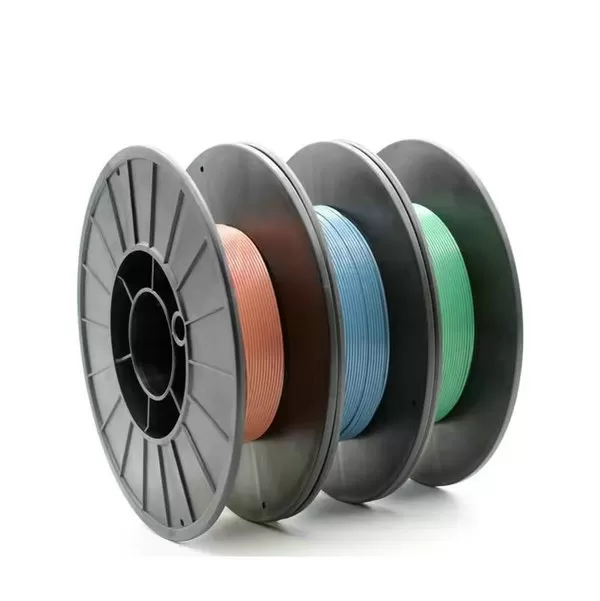

• In coils, on spools or straight lengths with clean, square cuts

• Translucent or Opaque

• Wall thickness varying along length (Bumped tubing)

• Coloured PEEK tubing

• Multi-Layer PEEK tubing

• Reinforced PEEK tubing (Stainless Steel Wires)

 Shaped tubing


Medical Grade PEEK Tubing Properties Information
PropertyReference StandardTest MethodUnitSpecificationResult
Physical PropertiesGlass TransitionASTM F2026ASTM D3418°C125-165147
Temperature, Tg
Melt Temperature, TmASTM F2026ASTM D3418°C320-360338
RecrystallizationASTM F2026ASTM D3418°C260-320289
Temperature, Tc
ViscosityASTM F2026ISO 11443Pa·s400-480437
Infrared SpectrumASTM F2026ASTM F1579/See Appendix X1See Appendix X2
DensityASTM F2026ASTM D1505kg/m31280-13201294
Chemical PropertiesTotal Heavy Metals (Ag, As, Bi, Cd, Cu, Hg, Mo, Pb, Sb, and Sn), maxASTM F2026US Pharmacopeia,ppm<100<10
Test 233
Mechanical PropertiesTensile Strength at Yield (zero slope), minASTM F2026ASTM D638, Type IV, 5.08 cm/minMPa90105
Tensile Strength at Break, minASTM F2026ASTM D638, Type IV, 5.08 cm/minMPa7080
Elongation at Break, minASTM F2026ASTM D638, Type IV, 5.08 cm/min%518
Flexural Strength, minASTM F2026ASTM D790MPa110163
Flexural Modulus, minASTM F2026ASTM D790GPa34
Impact Strength,ASTM F2026ISO 180kJ/m249
Notched Izod, min
Biological PropertiesGenotoxicityISO 10993-3ISO 10993-3/NegativeNegative
Animal Intracutaneous (Intradermal) ReactivityISO 10993-10ISO 10993-10/≤10
Skin SensitizationISO 10993-10ISO 10993-10/≤10
Acute Systemic ToxicityISO 10993-11ISO 10993-11/No Acute Systemic ToxicityNo Acute Systemic Toxicity
Subchronic Systemic ToxicityISO 10993-11ISO 10993-11/No Subchronic Systemic ToxicityNo Subchronic Systemic Toxicity
local Effects After ImplantationISO 10993-6ISO10993-6/No obvious difference between the test sample and the control sampleNo obvious difference between the test sample and the control sample
In Vitro CytotoxicityISO 10993-5ISO10993-5/≤11
Evaluation of Haemolytic PropertiesISO 10993-4ISO10993-4%<51
Material Mediated PyrogensISO 10993-11ISO 10993-11/No Pyrogenic ResponsesNo Pyrogenic Responses
Extractables of The MaterialISO 10993-18ISO 10993-18μg/gThe contents of Phenyl Sulfone≤300The contents of Phenyl Sulfone<0.09
