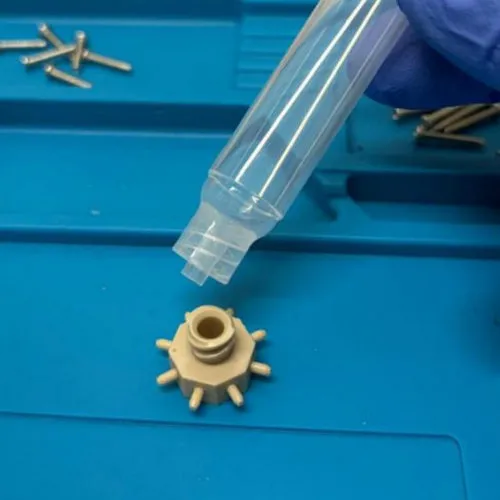

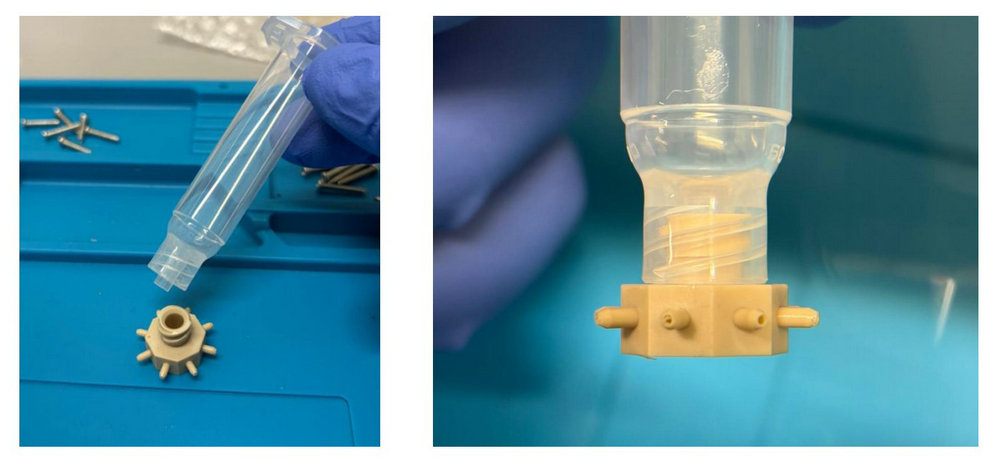

PEEK Luer Fittings

ARKPEEK PEEK Luer Fittings are precision-machined connectors designed for applications requiring reliable fluid or gas connections in demanding environments. Manufactured from high-performance PEEK, these fittings combine precision Luer geometry with the excellent mechanical, chemical, and thermal properties of PEEK.

PEEK Luer fittings can be produced in Luer Slip and Luer Lock configurations, with customized dimensions, threads, ports, internal passages, and mounting features according to application requirements. The standardized tapered interface requires careful control of dimensions, concentricity, surface finish, and sealing surfaces to achieve reliable mating and leakage performance.

High-Performance PEEK Material

PEEK provides a combination of properties that is difficult to achieve with conventional thermoplastics. It offers excellent resistance to many chemicals, solvents, oils, and aggressive fluids, making it suitable for medical, laboratory, analytical, and chemical fluid-handling applications.

Its high mechanical strength and dimensional stability also help maintain the geometry of the Luer taper and locking threads during assembly, pressure cycling, and repeated use. PEEK's high temperature resistance can further support applications involving elevated-temperature cleaning, sterilization, or demanding operating conditions, subject to validation of the specific material and application.

Precision CNC Machining

Manufacturing a PEEK Luer fitting requires more than basic plastic machining. The small component may incorporate a precision Luer taper, fine Luer Lock threads, internal fluid channels, sealing surfaces, thin-wall sections, and other small features.

ARKPEEK uses precision CNC machining processes to control these critical features. Machining parameters, tool geometry, cutting conditions, workholding, and machining sequence are carefully considered to minimize heat generation, deformation, burrs, and dimensional variation.

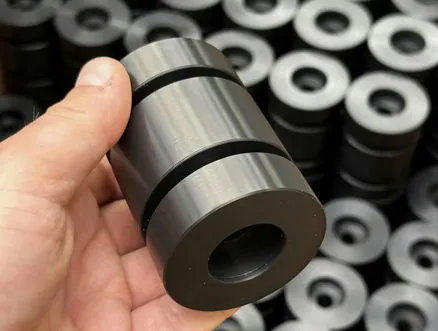

For reinforced PEEK grades, such as carbon-fiber-filled or glass-fiber-filled PEEK, tooling and machining conditions can be further adjusted according to the material formulation.

Applications

PEEK Luer fittings can be used in a wide range of precision fluid and gas management systems, including:

• Medical and diagnostic equipment

• Catheter and tubing assemblies

• Syringe and infusion systems

• Laboratory instruments

• Analytical equipment

• HPLC and chromatography systems

• Chemical fluid-handling systems

• Sampling equipment

• Research and testing equipment

• Precision valves and fluid-control assemblies

For medical applications, the appropriate PEEK grade, component design, manufacturing process, sterilization method, and regulatory requirements should be evaluated according to the intended use.

Custom PEEK Luer Fittings

Different applications may require customized connector dimensions or configurations. ARKPEEK can manufacture custom PEEK Luer fittings according to customer drawings or technical specifications, including customized taper configurations, internal passages, threads, ports, wall thicknesses, mounting structures, and overall dimensions.

Depending on production volume and design requirements, CNC machining or injection molding can be considered as the manufacturing method. CNC machining is particularly suitable for prototypes, customized components, and small-to-medium production volumes, while injection molding may be considered for higher-volume production after design validation.

Quality and Functional Performance

Because Luer fittings are functional connection components, quality control should extend beyond basic dimensional inspection. Critical dimensions, taper geometry, threads, surface finish, internal passages, and sealing surfaces should be controlled according to the application requirements. Where required, leak testing and mechanical performance testing can also be incorporated into the quality-control process.

For applications involving standardized medical Luer connections, the relevant requirements of the ISO 80369 series should be considered during design, manufacturing, and validation.

With its combination of high-performance PEEK material and precision machining capability, ARKPEEK provides customized PEEK Luer fittings for demanding medical, laboratory, analytical, and fluid-handling applications.
