PI Polyimide Tape

PI Polyimide Tape: High-Performance Adhesive Solution for Thermal and Electrical Demands

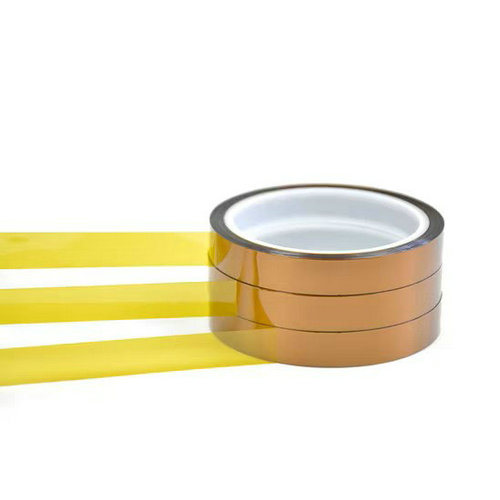

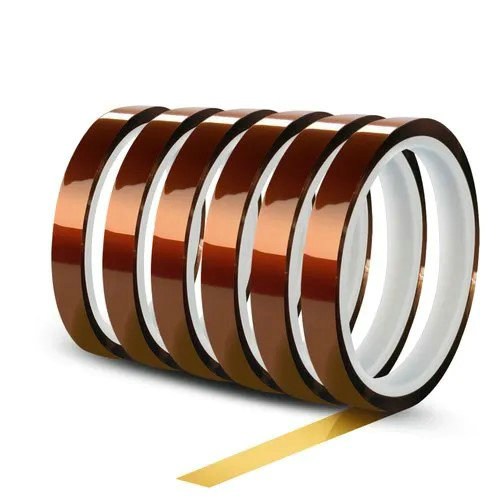

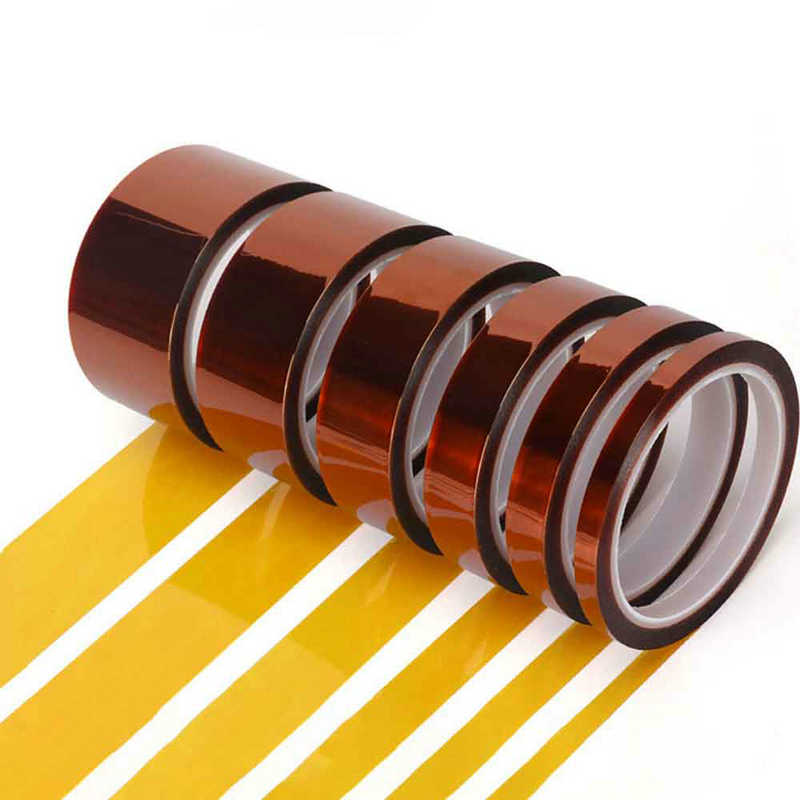

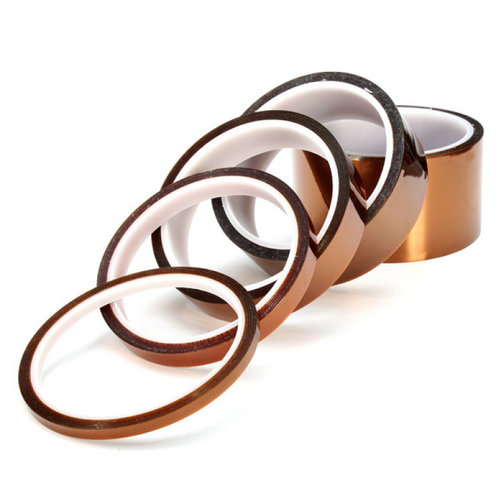

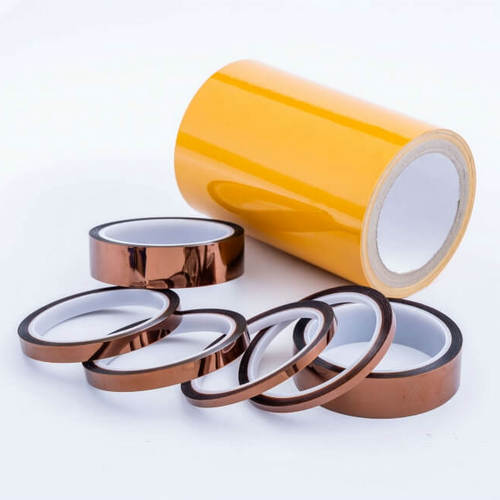

PI Polyimide Tape is a specialty adhesive tape made from high-purity polyimide film coated with high-temperature-resistant silicone or acrylic adhesive. Designed for industrial, electronic, and aerospace environments, this tape excels in extreme conditions where conventional tapes degrade. It offers a superior balance of heat resistance, electrical insulation, dimensional stability, and chemical durability.

Key Features & Benefits

• Extreme Temperature Resistance:
  Operates continuously from -269°C to +260°C, withstanding short-term peaks up to 500°C, making it ideal for high-temperature masking, soldering, and insulation.

• Excellent Electrical Insulation:
  Dielectric strength up to 6.5 kV ensures safe and stable performance in circuit board protection, motor insulation, and coil winding.

• High Adhesion, No Residue:
  The silicone adhesive ensures strong bonding to metal, plastic, glass, and PCB surfaces, and removes cleanly without residue.

• Chemical & Solvent Resistance:
  Resists acids, bases, oils, and most organic solvents — essential for chemical processing, battery assembly, and semiconductor fabrication.

• Dimensional & Mechanical Stability:
  Maintains integrity under mechanical stress and thermal cycling, with low shrinkage and elongation at elevated temperatures.

• Anti-Static / ESD Options:
  Available in ESD-safe versions for cleanroom use and sensitive electronic assemblies.

• Flame Retardant & Low Outgassing:
  Compliant with UL94 V-0, RoHS, and REACH standards; suitable for vacuum systems, space-grade applications, and ISO Class 5 cleanrooms.

Applications

• PCB Masking & Wave Soldering: Temporary insulation during soldering, preventing thermal damage to adjacent components

• Electrical Coil and Transformer Wrapping: Insulation in motors, transformers, and magnetic components

• Lithium Battery Insulation & Wrapping: Safe high-temp insulation for battery tabs, modules, and separators

• 3D Printing & Heated Beds: High-adhesion surface for printing thermoplastics like PEEK, ABS, and Nylon

• Aerospace & Automotive: Wiring harnesses, connectors, thermal shielding, EMI protection

• Semiconductor Manufacturing: Masking, etching protection, photoresist carrier masking, chemical handling

• Medical & Cleanroom Devices: Sterile environments requiring non-contaminating, low-outgassing tape

Specifications & Parameters

• Base Material: Polyimide Film (PI)

• Adhesive Type: Silicone (standard) / Acrylic (optional)

• Thickness Range: 0.025 mm to 0.125 mm (customizable)

• Width Range: 5 mm to 500 mm

• Length: 33 m (standard) / customizable roll lengths

• Adhesion to Steel: ≥ 6 N/25 mm

• Tensile Strength: ≥ 120 N/25 mm

• Dielectric Strength: ≥ 6.5 kV

• Temperature Resistance: -269°C to +260°C continuous, up to 500°C short-term

• Certifications: UL94 V-0, RoHS, REACH, ISO 9001

Why Choose Our PI Polyimide Tape?

• Precision Manufacturing: Produced in ISO-certified facilities with strict quality control

• Custom Options: ESD-safe, double-sided, pre-cut die shapes, or jumbo rolls available

• Residue-Free Removal: Clean and easy to peel, even after long high-temp exposure

• Reliable Global Supply: Fast turnaround and technical support from raw material to final product

• Cleanroom Ready: Packaged and handled in cleanroom conditions for sensitive environments
