O-rings are one of the most widely used sealing components in industrial systems. With a simple toroidal geometry, o-rings are designed to prevent the leakage of liquids or gases by creating a tight seal between two mating surfaces. When compressed within a groove, the elastic deformation of the o-ring generates sealing force, making it effective for both static and dynamic sealing applications.
Traditional o-rings are commonly made from elastomeric materials such as NBR, FKM (Viton®), EPDM, or silicone. While these materials perform well in general-purpose environments, they often reach their limits when exposed to high temperatures, aggressive chemicals, high pressures, or long-term mechanical stress. This is where high-performance polymer materials like PEEK become increasingly relevant.

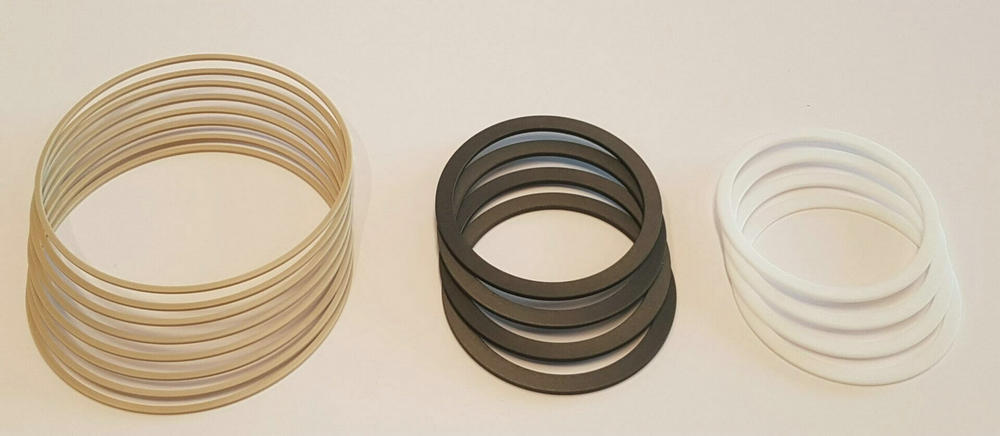

A PEEK O-ring is a sealing ring manufactured from Polyether Ether Ketone (PEEK), a high-performance semi-crystalline thermoplastic known for its exceptional mechanical, thermal, and chemical resistance. Unlike elastomeric o-rings, PEEK o-rings are typically classified as rigid or semi-rigid sealing elements, often used in demanding environments where conventional rubber seals fail.
PEEK o-rings are commonly used as:
High-pressure sealing rings
Backup rings for elastomer o-rings
Precision sealing components in aggressive media
PEEK maintains excellent mechanical stability over a wide temperature range:
Continuous working temperature: up to 250°C
Short-term exposure: up to 300°C
This makes PEEK o-rings ideal for high-temperature fluid systems, thermal cycling environments, and sterilization processes.
PEEK is resistant to:
Acids and bases
Organic solvents
Hydrocarbons and fuels
Seawater and ultrapure water
This chemical inertness allows PEEK o-rings to operate reliably in chemical processing, analytical instrumentation, and semiconductor manufacturing.
Compared with elastomer o-rings, PEEK o-rings offer:
High tensile strength
Excellent creep resistance
Superior dimensional stability under load
They are especially suitable for high-pressure sealing systems, often exceeding the pressure limits of rubber materials.
When reinforced with carbon fiber, graphite, or PTFE, PEEK o-rings exhibit:
Reduced friction coefficient
Improved wear resistance
Longer service life in dynamic applications
This makes modified PEEK o-rings ideal for moving or cyclic sealing interfaces.
PEEK does not degrade easily over time and shows very low outgassing, which is critical for:
Vacuum systems
Semiconductor and electronics manufacturing
Aerospace applications
PEEK o-rings are widely used in:
High-pressure pumps and valves
Hydraulic and pneumatic systems
Analytical and chromatography instruments (HPLC, UHPLC)
They often function as anti-extrusion rings or backup rings, protecting softer elastomer seals.
In chemical and laboratory environments, PEEK o-rings provide:
Chemical purity
Resistance to aggressive solvents
Stable sealing performance under fluctuating temperatures
This makes them a preferred choice for reactors, dosing systems, and fluid connectors.
Medical-grade PEEK o-rings are suitable for:
Autoclave sterilization
Endoscopic and diagnostic equipment
Drug delivery and fluid handling systems
Their biocompatibility and sterilization resistance give them an advantage over traditional elastomers.
Thanks to their low outgassing and dimensional stability, PEEK o-rings are used in:
Vacuum chambers
Wafer processing equipment
Cleanroom fluid systems
In aerospace and advanced industrial systems, PEEK o-rings support:
Lightweight system design
High reliability under extreme conditions
Long service intervals
While PEEK o-rings are not a direct replacement for all elastomer o-rings, they excel in applications where temperature, pressure, chemical resistance, and dimensional stability are critical. In many cases, PEEK o-rings are used in combination with elastomers to enhance sealing performance and system reliability.
PEEK o-rings represent a high-performance sealing solution designed for extreme and demanding environments. With superior thermal stability, chemical resistance, mechanical strength, and long-term reliability, they are increasingly used in high-end industries such as chemical processing, medical devices, analytical instrumentation, semiconductor manufacturing, and aerospace.
For engineers seeking a sealing solution beyond the limits of conventional rubber materials, PEEK o-rings provide a technically robust and reliable alternative.
