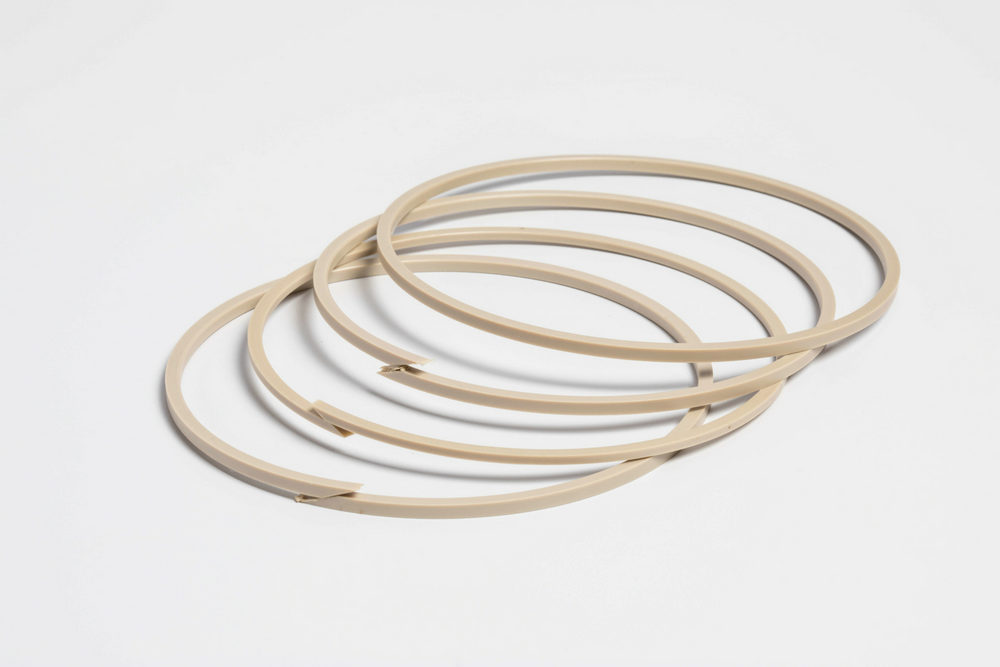

PEEK back up rings, also referred to as PEEK backup rings, are critical sealing support components used alongside elastomeric O-rings in high-pressure systems. Their primary function is to prevent O-ring extrusion into sealing gaps when exposed to high pressure, temperature fluctuations, or aggressive media. Compared with traditional backup ring materials such as PTFE or nylon, PEEK backup rings offer superior mechanical strength, thermal stability, and long-term reliability in demanding engineering environments.
As system pressures continue to increase and operating conditions become more extreme, PEEK back up rings are increasingly selected for critical sealing applications in aerospace, oil & gas, chemical processing, semiconductor manufacturing, and high-performance fluid control systems.
A backup ring is installed adjacent to an elastomeric seal - most commonly an O-ring - to support it against deformation. Under high pressure, soft elastomers can extrude into the clearance gap between mating components, leading to seal failure, rapid wear, or catastrophic leakage.
Back up rings serve several essential functions:
Prevent O-ring extrusion under high pressure
Maintain sealing integrity in wide clearance gaps
Improve seal life and system reliability
Enable the use of softer elastomers for better sealing performance
In low-pressure applications, elastomer seals may perform adequately without support. However, as pressure, temperature, or dynamic loading increases, the use of backup rings becomes mandatory.
PEEK is a high-performance engineering thermoplastic with outstanding compressive strength and modulus. Unlike PTFE, which tends to cold flow under load, PEEK backup rings maintain dimensional stability even under sustained high pressure. This makes PEEK back up rings ideal for applications exceeding 30 MPa (4,300 psi), where conventional materials may fail.
PEEK offers a continuous operating temperature of approximately 250°C and short-term resistance up to 300°C. In high-temperature sealing environments—such as downhole oil & gas tools or chemical reactors—PEEK backup rings retain their mechanical properties, ensuring consistent support for elastomer seals.
One of the key advantages of PEEK backup rings is their low creep behavior under long-term static load. This property is critical in sealing systems where components remain pressurized for extended periods. Additionally, PEEK exhibits excellent wear resistance, making it suitable for both static and dynamic sealing configurations.
PEEK is highly resistant to a wide range of chemicals, including hydrocarbons, fuels, acids, bases, and solvents. In aggressive chemical environments where elastomers are already carefully selected, PEEK back up rings provide a chemically stable support material that does not degrade or contaminate the system.
Compared to softer plastics, PEEK can be precisely machined to tight tolerances. This allows PEEK backup rings to be manufactured in complex geometries, split designs, or custom dimensions to match specific gland designs and sealing requirements.
PEEK backup rings are commonly used in applications where conventional materials reach their performance limits:
High-pressure hydraulic and pneumatic systems
Oil & gas downhole tools and valves
Chemical processing pumps and reactors
Semiconductor fluid delivery systems
Aerospace actuators and fuel systems
High-temperature industrial sealing assemblies
In many of these scenarios, system reliability, safety, and service life are critical, making PEEK back up rings a preferred solution despite their higher material cost.
While PTFE backup rings remain suitable for moderate pressure and temperature conditions, PEEK becomes the material of choice when applications involve:
Extremely high pressure
Elevated or fluctuating temperatures
Long-term static loading
Tight clearance gaps
Aggressive chemical exposure
High reliability or safety-critical requirements
In such environments, the use of PEEK backup rings significantly reduces the risk of extrusion, seal failure, and unplanned downtime.
PEEK back up rings represent a premium sealing support solution for modern high-performance systems. With superior mechanical strength, thermal stability, creep resistance, and chemical compatibility, PEEK backup rings outperform traditional materials in the most demanding operating conditions. For engineers designing sealing systems where failure is not an option, PEEK back up rings provide a robust and reliable answer.
