ARKPEEK-MED® Medical-Grade PEEK Tubing
Product Catalog & Technical Specifications
1. Product Overview

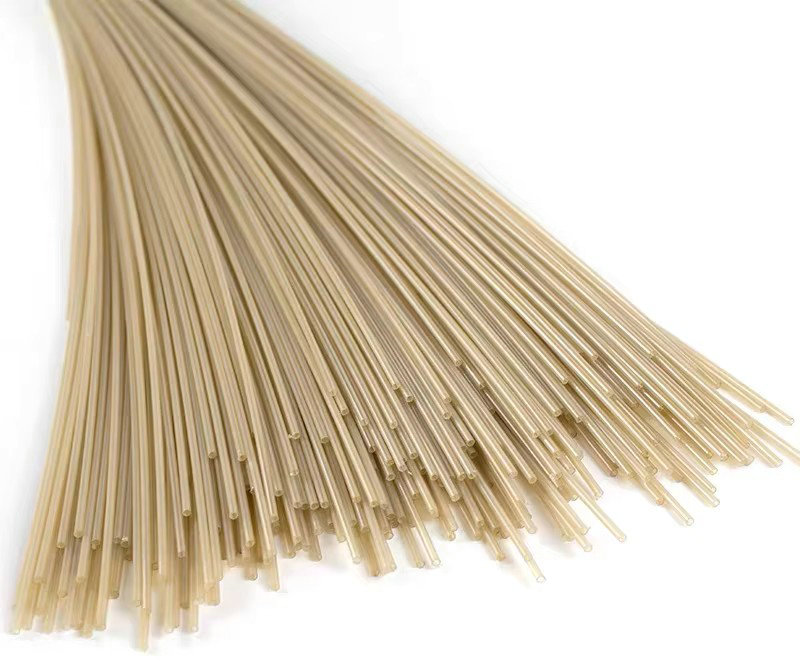

ARKPEEK-MED® Medical-Grade PEEK Tubing is a high-precision component engineered for demanding medical and minimally invasive applications. Manufactured from pure Polyetheretherketone (PEEK) resin compliant with ISO 10993 biocompatibility standards, it offers an exceptional combination of chemical inertness, mechanical strength, and biocompatibility. It is an ideal choice for endoscopic instruments, interventional catheters, surgical tools, and high-precision fluid delivery systems.
2. Technical Specifications & Product Range
2.1 Standard Dimensions
Below is a list of typical sizes, including the ones you specified and similar variants. All dimensions and lengths are customizable to meet specific design requirements.
OD(mm) | ID(mm) | THK(mm) | Length(mm) | Tolerance(OD/ID) |
1.40 | 1.10 | 0.15 | 2200, 2350, Custom | ±0.03 mm |
1.50 | 0.98 | 0.26 | 2200, 2350, Custom | ±0.03 mm |
1.60 | 1.18 | 0.21 | ±0.03 mm | |
1.60 | 0.76 | 0.42 | ±0.03 mm | |
2.35 | 1.60 | 0.375 | 2300, 2350, Custom | ±0.03 mm |
Tolerance Note: Utilizing advanced extrusion technology, our tubing guarantees a high-precision dimensional tolerance of ±0.03 mm for both OD and ID as standard. Custom tolerances (e.g., ±0.01 mm) are available upon request.
2.2 Material & General Properties
Base Material: 100% Virgin PEEK Resin (ARKPEEK-MED® Medical Grade)
Density: ~1.30 g/cm³
Color: Natural (amber/translucent), Black, or custom colors (e.g., Blue for differentiation)
Radiopacity: Can be compounded with safe radiopaque fillers (e.g., Barium Sulfate) for X-ray visibility.
3. Key Features & Medical Application Benefits
ARKPEEK-MED® tubing is designed to meet the stringent demands of the medical field:
Proven Biocompatibility & Compliance:
The material complies with ISO 10993 biological evaluation standards, passing tests for cytotoxicity, sensitization, and irritation.
Suitable for long-term and short-term human contact in medical devices.
Superior Chemical Inertia & Sterilization Resistance:
Inert to most chemicals, including common disinfectants and bodily fluids.
Autoclavable (Steam Sterilizable) and compatible with all standard sterilization methods: Gamma Radiation, Ethylene Oxide (EtO), and Electron Beam.
Excellent Mechanical Performance for Medical Devices:
High Strength & Stiffness: Maintains structural integrity under pressure and mechanical load, even with thin walls.
Outstanding Flexibility & Kink Resistance: Can navigate complex anatomical paths without collapsing.
Fatigue Resistance: Withstands repeated flexing and manipulation, crucial for dynamic surgical tools.
Inherent MRI Compatibility:
PEEK is non-magnetic and non-conductive, eliminating risks of magnetic attraction or induced currents in MRI environments.
Causes minimal image artifact, ensuring clear and accurate MRI scans—a critical advantage over metal components.
Precision Fluid Handling:
Smooth inner bore minimizes fluid resistance, reduces protein adhesion, and lowers the risk of thrombus formation.
Consistent dimensions ensure predictable and reliable fluid flow rates.
4. Target Applications
This tubing is primarily used in high-performance, minimally invasive medical devices:
Endoscopic Instruments: Biopsy channel tubes, air/water supply tubes, light guide sheaths.
Interventional Catheters: Microcatheters, guide catheters, intravascular ultrasound (IVUS) catheters.
Minimally Invasive Surgical Tools: Steerable sheaths, laparoscopic instrument components.
Precision Drug Delivery & Infusion Systems.
Fluid Management in Diagnostic & Laboratory Equipment.
5. Customization & Ordering
We offer comprehensive customization to meet unique device requirements:
Dimensional Customization: Precise control over OD, ID, wall thickness, and length.
Performance Customization: Tailored flexibility, radiopacity levels, or surface properties.
Secondary Processing: Precision cutting, tipping, marking, and assembly services available.
Technical Support: Our engineering team can assist with material selection and design optimization.
Ordering Process:
Provide detailed specifications or drawings.
We evaluate and provide a technical proposal and quotation.
Upon confirmation, a contract is signed, and sample production begins.
After sample validation, bulk production and delivery are scheduled.
Disclaimer
*The data provided herein is for informational purposes and consists of typical values for medical-grade PEEK tubing. Specific product performance may vary based on manufacturing processes, testing methods, and application environments. For critical applications, comprehensive engineering evaluation and validation testing are strongly recommended. For the official technical data sheet (TDS) and material safety data sheet (MSDS) for ARKPEEK-MED®, please contact us directly. ARKPEEK-MED® is a trademark of PEEKChina or its affiliates.*
