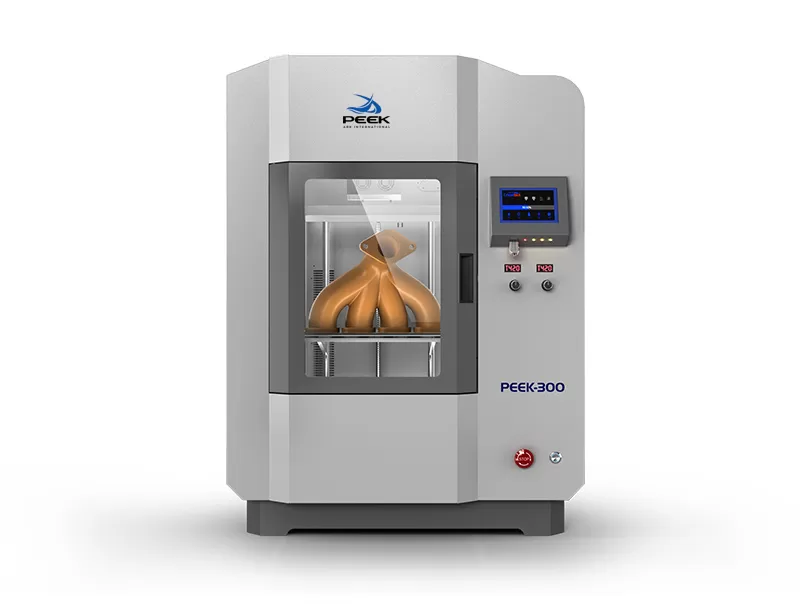

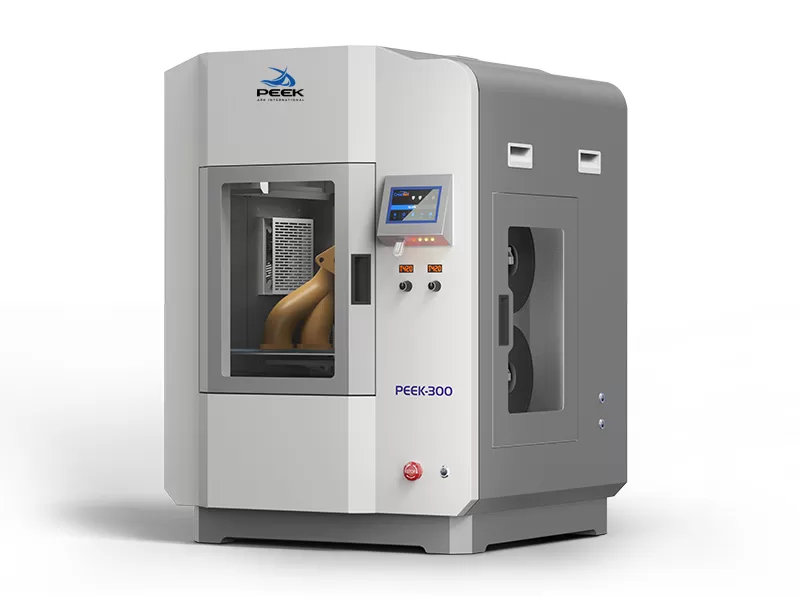

Direct Annealing System (DAS), the world's first and extraordinary technology by. Annealing process is instant controllable during printing. It aims to provide best quality parts in one time without warping and cracking printing of big size functional materials. (The technology is patent protected and available by only)
Printing | |
Build Volume | 300*300*400 mm |
Print Resolution | 0.04 mm-0.4 mm |
Filament Diameter | 1.75 mm |
Number of Nozzles | Dual Extruder |
Print Speed | 10-150 mm/s |
Nozzle Diameter | 0.4 mm (0.3~1.0 mm optional) |
Filament Compatibility | Engineering Plastics: PLA, TPU, PC, ABS, PA6, PETG, PVDF, TPUHigh temperature Material: PPSU, PEI (ULTEM), PA12, PSU, PPS, PA-CF, POM, PPUltra-performance material: Medical grade PEEK, PEEK, PEKK, CF-PEEK (Carbon fiber), GF-PEEK (glass fiber), etc. Software |
Software Bundle | Creatware, Simplify3D, Cura, Slice3r |
Operating Systems | Win7/8/10, MacOS |
Print File Type | STL, OBJ, AMF, Gcode |
Special Function | |
Outage Restored | Save data when power is off |
Filament Detection | Pause printing when filament run out |
Direct AnnealingSystem (DAS) | Annealing process is instant controllable during printing. It aims to provide best quality parts in one time without warping and crackingprinting of big size functional materials. |
Heat insulation | Triple heat insulation |
Emergency stop switch | Support emergency stop |
High temperatureaccessories | High temperature resistance motors, linear rails, belts and circuits toensure long time high temperature printing. Temperature |
Nozzle Max. Temperature | 500 ℃ |
Chamber Temperature | 120 ℃ |
Platform Max. Temperature | 200 ℃ |
Direct Annealing Temperature | 0~400 ℃ |
Mechanical | |
Cooling | Air pump cooling & water cooling |
Platform | PCB aluminum + PEEK print board |
Positioning Precision | X Y axis 0.01mm, Z axis 0.0025mm |
Extruder | Directly Drive |
Machine Construction | Fully enclosed hot chamber |
Bed Leveling | Manually/Automatic |
Electrical | |
Input Power | 200~240 V, 120A |
Max. Power | 3 000 W |
Screen | 4.3'' full color touch screen, multi-language |
Print Method | USB Connectivity/USB Disk |
Size & Weight | |
Machine Size | 650*600*750 mm |
G.W | 100 kg |
Packing Size | 820*720*1080mm |
N.W | 135 kg |
Specs Comparison With Other Brands
PEEK-300 | Stratasys F370 | Intamsys Funmat Pro410 | Apium M220 | |
Place of origin | China | USA | China | Germany |
Build Volume(mm) | 300*300*400 | 355*254*355 | 305*305*406 | 170*170*130 |
Max Nozzletemperature | 500 ℃ | 300℃ | 450℃ | 540 ℃ |
Max Chamber temperature | 120℃ | 90℃ | 90℃ | |
Max hot bed temperature | 200 °C | - | 160 °C | - |
Temperature around the part is controlled | 0-400 ℃ | None | None | 0-200 ℃ |
Min layer resolution | 0.04 mm | 0.013 mm | 0.05 mm | 0.1 mm |
Number of extruder | 2 | 2 | 2 | 1 |
Build platform | Carbon fiber sheet | - | Ceramic Glass | Medical grade material |
Materials | PEKK, PEEK, medical PEEK, Carbon-PEEK, ULTEM, PEI, PPSU, PA/CF, PC, PA Alloys, PA6, PA12, ABS, Carbon Fiber, Nylon, ASA, PETG, ESD-Safe, HIPS, TPU, PLA, PVA, TPU 65A,ETC. | PLA, ABS, ASA, PC-ABS, TPU 92A | PEEK,PEI,PPSU, PA/CF, PC, PC Alloys, PA, ABS, Carbon Fiber-Filled, Metal-Filled, Fiberglass-Filled, Nylon, ASA, PETG, ESD-Safe, HIPS, TPU, PLA, PVA, ETC. | Medical PEEK |
Machine size | 650*600*750 | 964*711*1626 | 720*680*1470 | 850*685*675 |
Weight | 120 kg | 227 kg (with cabinet) | 200 kg (with cabinet) | 66 kg |
