Filament & Application

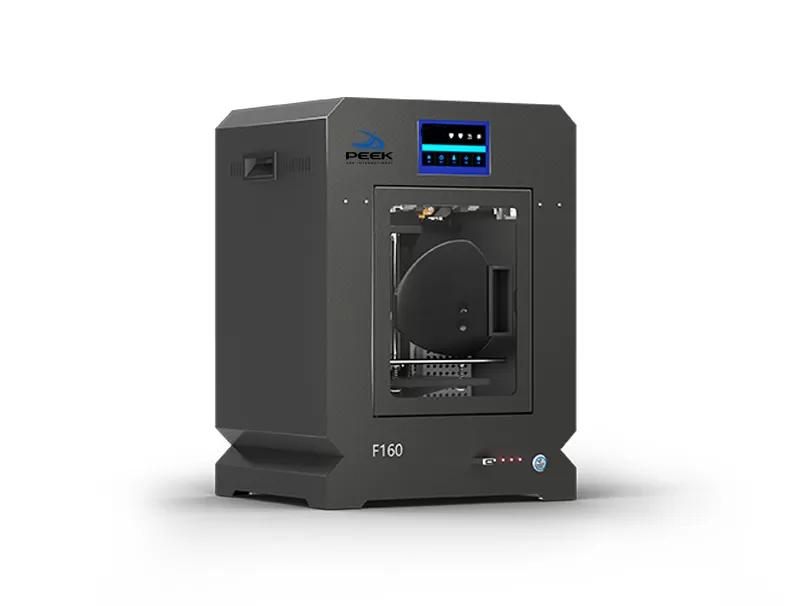

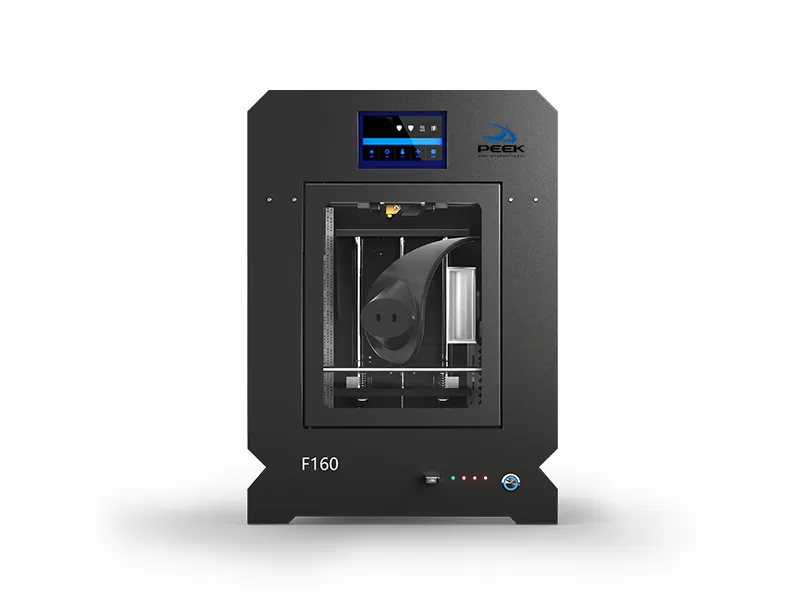

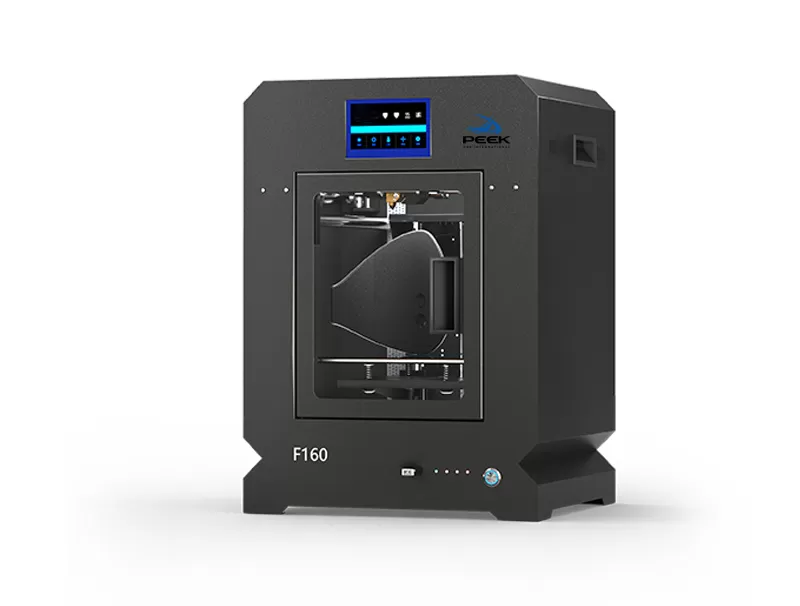

Standard F160 are able to print PLAABS,Nylon,etc perfectly. The F160-PEEK version applied to 3D printing of PEEK. We supply high quality PEEK flament as p-4rounded-lg bglight border, which requires 420°C extrusion temperature. The material have features of high strength, high toughness, corrosion resistance and wearresistance. It can be used in aerospace, electronics, medical, machinery, automotive and other industries
| Printing | |
| Print Technology | Fused Deposition Modeling |
| Beuild Volume | 160*160*200 mm |
| Number of Nozzles | Single |
| Layer Resolution | 0.01 mm |
| Filament Diameter | 1.75 mm |
| Filament Compatibility | PLA,ABS,Carbon Fiber,Wood,Nylon,PC.PTEG,HIPS,PP.Flexible, TPU,PVA, PEEK, ULTEM(F160-PEEK) etc. |
| Nozzle Diameter | 0.4 mm (0.3 0.5 0.6 0.8 1.0 mm) |
| Print File Type | STL, OBJ, AMF, Gcode |
| Electrical | |
| Power Requirements | 100V-110v or 200V-240V/50-60Hz (Depending on your country's default voltage) |
| Rated Power | F160:340W,F160 PEEK:1100W |
| Screen | 4.3" Touch Screen with Multi-language |
| storage Media | U Disk |
| Connectivity | USB |
| Mechanical | |
| Construction | Power-Coated Steel,Aluminum Casting for Motion Components, POM etc |
| Build Plate | Heatable Aluminium PCB with BuildTak |
| Build Plate Leveling | Manually |
| Extruder | Directly Drive |
| stepper Motors | 1.8°Step Angle with 1/16 Micro-stepping |
| XY Positioning Precision | 12.7 um |
| Z Positioning Precision | 1.25 um |
| Speed | |
| Best Printing speed | 70 mm/s |
| Max.Printing speed | 300 mm/s |
| Temperature | |
| Ambient Operating Temperature | 15-32 °℃ |
| Max.Nozzle Temperature | F160:260 °C F160-PEEK 420℃ |
| Max.Bed Temperature | 150 ℃ |
| Max.Chamber Temperature | 70 °℃(F160-PEEK) |
| Software | |
| software | CreatWare,Simplify 3D,Cura,Slic3r,etc |
| Supported File Types | STLOBJ,AMF |
| perating Systems | Win7/8/10,macos |
| Special Function | |
| Outage Restored | Save data when power is off |
| Filament Detection | Pause printing when filament run out |
| Automatic Shut-down | Turn off the power automatically when printing is complete |
| Size & Weight | |
| product Dimensions & Weight | 370*320"490 mm 18 kg |
| Packing size & Weight | 470*420*600 mm 23 kg |
