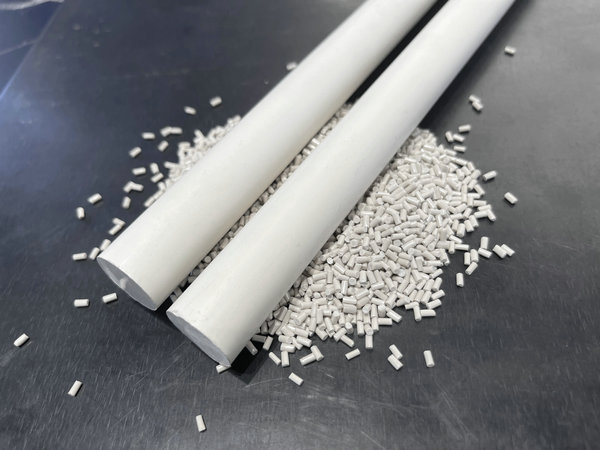

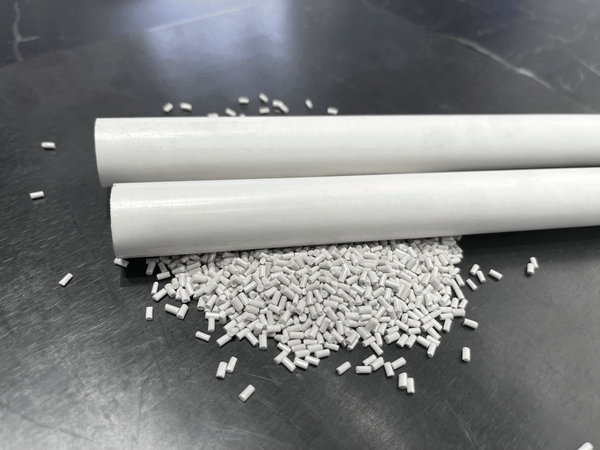

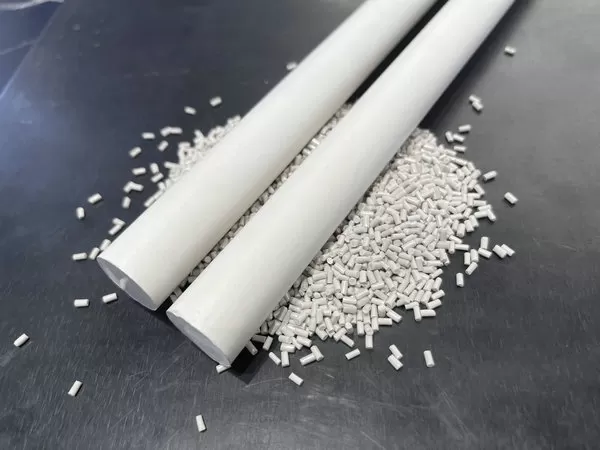

Ceramic Filled PEEK Rod

Ceramic PEEK Material

Discover the art of precision engineering with Ceramic Filled PEEK Rods. Their exceptional machinability enables manufacturers to achieve intricate designs and complex shapes effortlessly. Combined with high strength and good stiffness, these rods ensure your components maintain their integrity, even under demanding conditions. Trust in Ceramic Filled PEEK Rods for reliable performance and seamless machining, elevating your projects to new levels of excellence.

Inquire Now Next Products

MATERIAL GRADE

Ceramic PEEK Properties

Strong, stiff, and machinable - Ceramic Filled PEEK Rods offer the complete package for precision engineering. Their inherent strength, enhanced by ceramic fillers, guarantees robust performance in various applications. Simultaneously, their excellent machinability empowers engineers and manufacturers to create intricate parts with ease. Experience the benefits of Ceramic Filled PEEK Rods in your projects, where their exceptional mechanical properties and seamless fabrication ensure optimal results.

MAIN FEATURES

good machinability

high dimensional stability

high strength

high stiffness

low thermal expansion

low burring

good heat deflection temperature

very good thermal stability

Custom Size Table

Number	Rod diameter(mm)	Weight per meter ( g )				Dimension tolerance mm
Number	Rod diameter(mm)	ARKPEEK-1000	ARKPEEK-CF30	ARKPEEK-GF30	ARKPEEK-MOD	Dimension tolerance mm
1	5	31	33	34	32	0~0.2
2	6	42	46	47	45	0~0.2
3	7	55	61	63	59	0~0.2
4	8	70	78	80	75	0~0.2
5	10	107	119	123	115	0~0.2
6	12	152	169	175	163	0~0.2
7	15	235	261	270	252	0~0.2
8	18	336	374	387	361	0~0.2
9	20	413	460	476	445	0~0.2
10	22	499	556	575	537	0~0.2
11	25	499	556	575	537	0~0.2
12	28	663	736	761	712	0~0.5
13	30	825	917	948	887	0~0.5
14	33	943	1049	1085	1014	0~0.5
15	35	1136	1265	1307	1222	0~0.5
16	38	1275	1419	1467	1371	0~0.5
17	40	1499	1669	1725	1612	0~o.5
18	42	1658	1846	1909	1783	0~0.5
19	45	1825	2033	2102	1964	0~1
20	48	2102	2330	2409	2250	0~1
21	50	2386	2648	2738	2557	0~1
22	53	2586	2881	2979	2783	0~1
23	55	2902	3232	3343	3122	0~1
24	60	3122	3478	3597	3359	0~1
25	65	3699	4133	4274	3991	0~1
26	70	4317	4864	5030	4698	0~2
27	80	5055	5632	5825	5440	0~2
28	85	6586	7340	7591	7089	0~2
29	90	7428	8279	8562	7995	0~2
30	95	8321	9275	9593	8957	0~2
31	100	9265	10328	10682	9973	0~2
32	110	10260	11438	11830	11045	0~2
33	120	12403	13828	14303	13353	0~2
34	130	14750	16446	17011	15881	0~2
35	140	17301	19291	19955	18628	0~3
36	150	20057	22365	23134	21595	0~3
37	160	23016	25666	26549	24783	0~3
38	165	26180	29194	30199	28189	0~3
39	180	27838	31044	32112	29975	0~3
40	200	33149	36964	38206	35663	0~3
41	220	49477	55176	57046	53247	0~3
42	250	63866	71226	73649	68743	0~3

TAGS: PEEK Rod
