PEEK material performance
Polyetheretherketone (PEEK) is a high-performance, engineering thermoplastic characterized by an unusual combination of properties. These properties range from high temperature performance to mechanical strength and excellent chemical resistance.

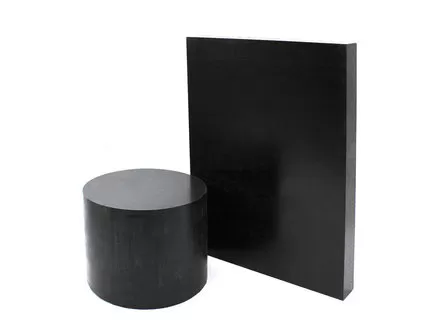

ESD PEEK is an electrically modified plastic material with a defined surface resistance between 106 -109 Ω. Due to its electrostatic dissipation properties, this material is commonly used in applications within the semi-conductor industry.

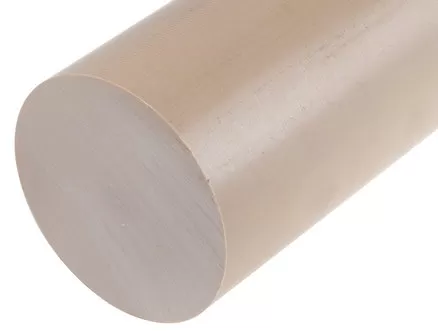

ARKPEEK-1000: 100% PEEK
Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.
ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK
Carbon fibre reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.
ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK
Glass filled PEEK exhibits increased mechanical strength and high rigidity. improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.
ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10% Graphite
high performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range of PEEK Rod is from -30°C to 250°C and has a short term maximum service temperature of 310°C.
Number | Rod diameter(mm) | Weight per meter ( g ) | Dimension tolerance mm | |||
ARKPEEK-1000 | ARKPEEK-CF30 | ARKPEEK-GF30 | ARKPEEK-MOD | |||
1 | 5 | 31 | 33 | 34 | 32 | 0~0.2 |
2 | 6 | 42 | 46 | 47 | 45 | 0~0.2 |
3 | 7 | 55 | 61 | 63 | 59 | 0~0.2 |
4 | 8 | 70 | 78 | 80 | 75 | 0~0.2 |
5 | 10 | 107 | 119 | 123 | 115 | 0~0.2 |
6 | 12 | 152 | 169 | 175 | 163 | 0~0.2 |
7 | 15 | 235 | 261 | 270 | 252 | 0~0.2 |
8 | 18 | 336 | 374 | 387 | 361 | 0~0.2 |
9 | 20 | 413 | 460 | 476 | 445 | 0~0.2 |
10 | 22 | 499 | 556 | 575 | 537 | 0~0.2 |
11 | 25 | 499 | 556 | 575 | 537 | 0~0.2 |
12 | 28 | 663 | 736 | 761 | 712 | 0~0.5 |
13 | 30 | 825 | 917 | 948 | 887 | 0~0.5 |
14 | 33 | 943 | 1049 | 1085 | 1014 | 0~0.5 |
15 | 35 | 1136 | 1265 | 1307 | 1222 | 0~0.5 |
16 | 38 | 1275 | 1419 | 1467 | 1371 | 0~0.5 |
17 | 40 | 1499 | 1669 | 1725 | 1612 | 0~o.5 |
18 | 42 | 1658 | 1846 | 1909 | 1783 | 0~0.5 |
19 | 45 | 1825 | 2033 | 2102 | 1964 | 0~1 |
20 | 48 | 2102 | 2330 | 2409 | 2250 | 0~1 |
21 | 50 | 2386 | 2648 | 2738 | 2557 | 0~1 |
22 | 53 | 2586 | 2881 | 2979 | 2783 | 0~1 |
23 | 55 | 2902 | 3232 | 3343 | 3122 | 0~1 |
24 | 60 | 3122 | 3478 | 3597 | 3359 | 0~1 |
25 | 65 | 3699 | 4133 | 4274 | 3991 | 0~1 |
26 | 70 | 4317 | 4864 | 5030 | 4698 | 0~2 |
27 | 80 | 5055 | 5632 | 5825 | 5440 | 0~2 |
28 | 85 | 6586 | 7340 | 7591 | 7089 | 0~2 |
29 | 90 | 7428 | 8279 | 8562 | 7995 | 0~2 |
30 | 95 | 8321 | 9275 | 9593 | 8957 | 0~2 |
31 | 100 | 9265 | 10328 | 10682 | 9973 | 0~2 |
32 | 110 | 10260 | 11438 | 11830 | 11045 | 0~2 |
33 | 120 | 12403 | 13828 | 14303 | 13353 | 0~2 |
34 | 130 | 14750 | 16446 | 17011 | 15881 | 0~2 |
35 | 140 | 17301 | 19291 | 19955 | 18628 | 0~3 |
36 | 150 | 20057 | 22365 | 23134 | 21595 | 0~3 |
37 | 160 | 23016 | 25666 | 26549 | 24783 | 0~3 |
38 | 165 | 26180 | 29194 | 30199 | 28189 | 0~3 |
39 | 180 | 27838 | 31044 | 32112 | 29975 | 0~3 |
40 | 200 | 33149 | 36964 | 38206 | 35663 | 0~3 |
41 | 220 | 49477 | 55176 | 57046 | 53247 | 0~3 |
42 | 250 | 63866 | 71226 | 73649 | 68743 | 0~3 |
